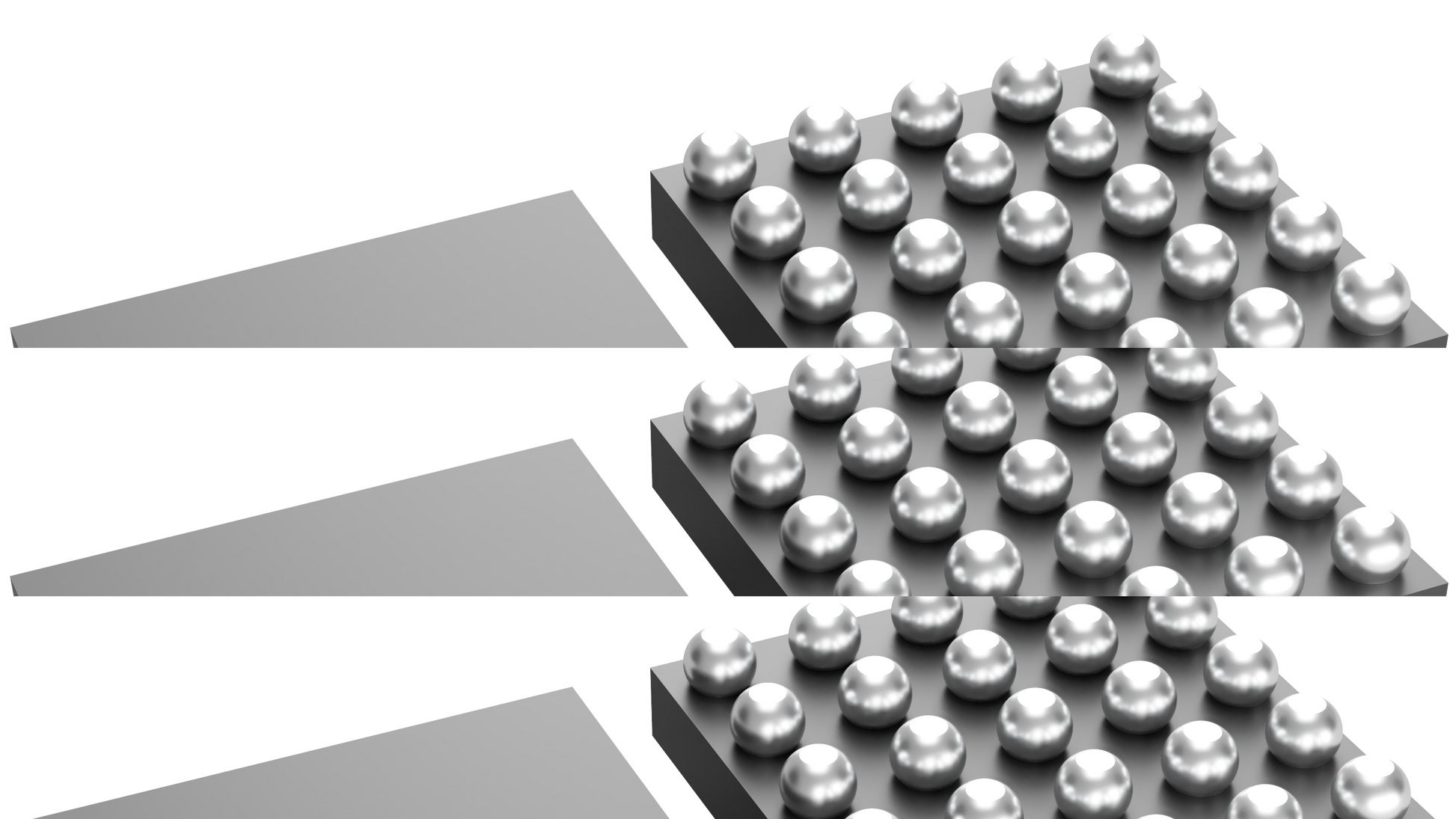

LP8550TLX/NOPB Texas Instruments - Yeehing Electronics

High-Efficiency LED Backlight Driver for Notebooks

Pricing (USD)

Quantity	Unit Price
1 — 99	1.698
100 — 249	1.402
250 — 999	1.007
1,000 +	0.53

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	LED Lighting Drivers
RoHS	Y
Minimum Operating Temperature	- 30 C
Maximum Operating Temperature	+ 85 C
Package / Case	DSBGA-25
Series	LP8550
Packaging	Reel
Features	Adjustable Switch Frequency, Enable/Shutdown, I2C Control, PWM Control
Operating Temperature Range	- 30 C to + 85 C
Brand	Texas Instruments
Product Type	LED Lighting Drivers
Factory Pack Quantity	3000
Subcategory	Driver ICs

For more information, please refer to datasheet

Documents

LP8550TLX/NOPB Datasheet

More Information

The LP8550 is a white-LED driver with integrated boost converter. It has six adjustable current sinks which can be controlled by PWM input or with I2C-compatible serial interface. The boost converter has adaptive output voltage control based on the LED driver voltages. This feature minimizes the power consumption by adjusting the voltage to lowest sufficient level in all conditions.
