LP8552TLX-E04/NOPB Texas Instruments - Yeehing Electronics

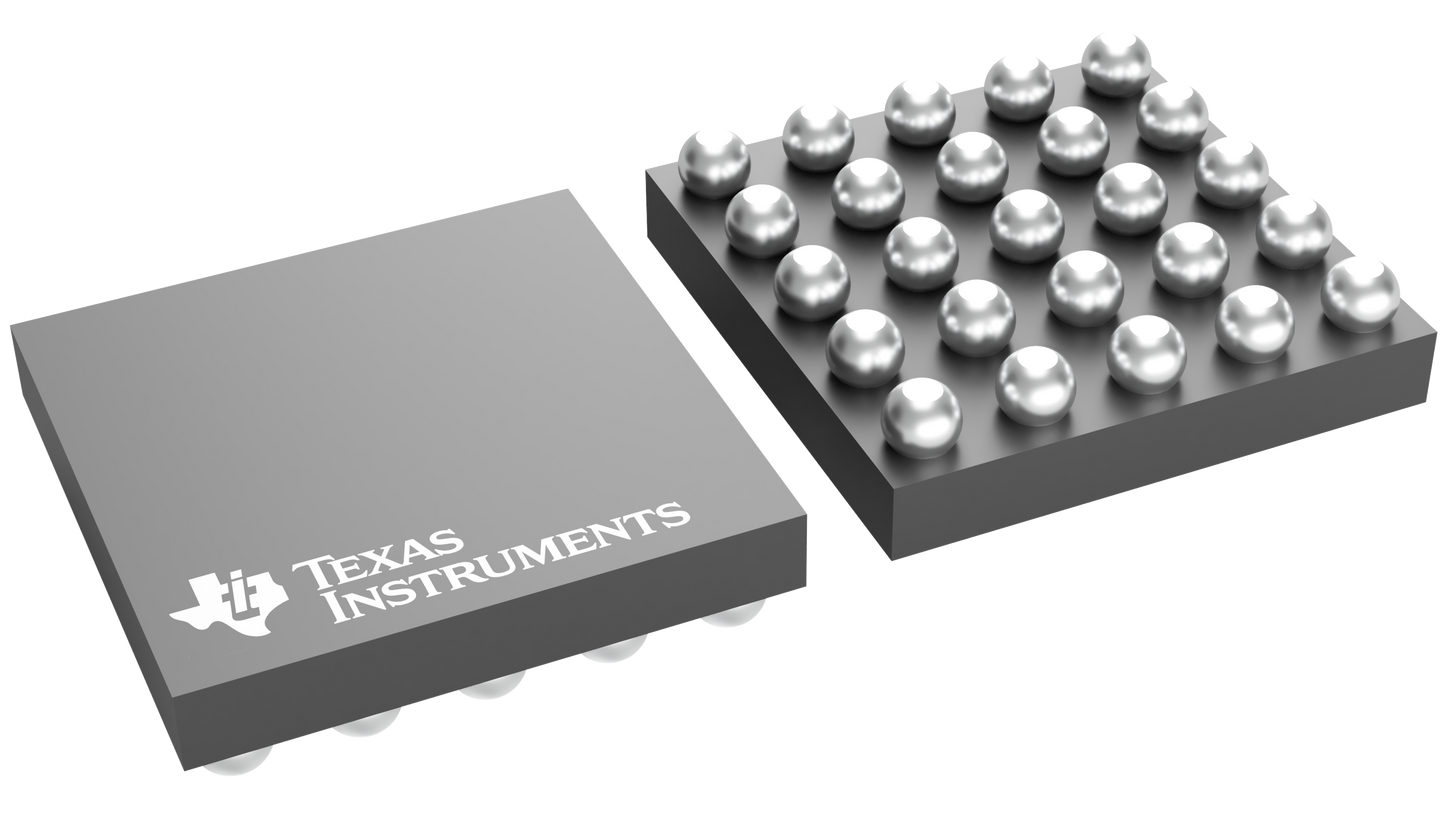

Six channel high-efficiency LED backlight driver for notebooks with BGA package

Pricing (USD)

Quantity	Unit Price
1 — 99	1.864
100 — 249	1.539
250 — 999	1.106
1,000 +	0.58

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	LED Lighting Drivers
RoHS	Y
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Series	LP8552
Packaging	Reel
Features	Adjustable Switch Frequency, Enable/Shutdown, I2C Control, PWM Control
Operating Temperature Range	- 40 C to + 85 C
Brand	Texas Instruments
Product Type	LED Lighting Drivers
Factory Pack Quantity	3000
Subcategory	Driver ICs
Unit Weight	0.000268 oz

For more information, please refer to datasheet

Documents

LP8552TLX-E04/NOPB Datasheet

More Information

The LP8552 is a white LED driver with integrated boost converter. It has six adjustable current sinks which can be controlled by PWM input or with I2C-compatible serial interface. The boost converter has adaptive output voltage control based on the LED driver voltages. This feature minimizes the power consumption by adjusting the voltage to lowest sufficient level in all conditions.
