Description

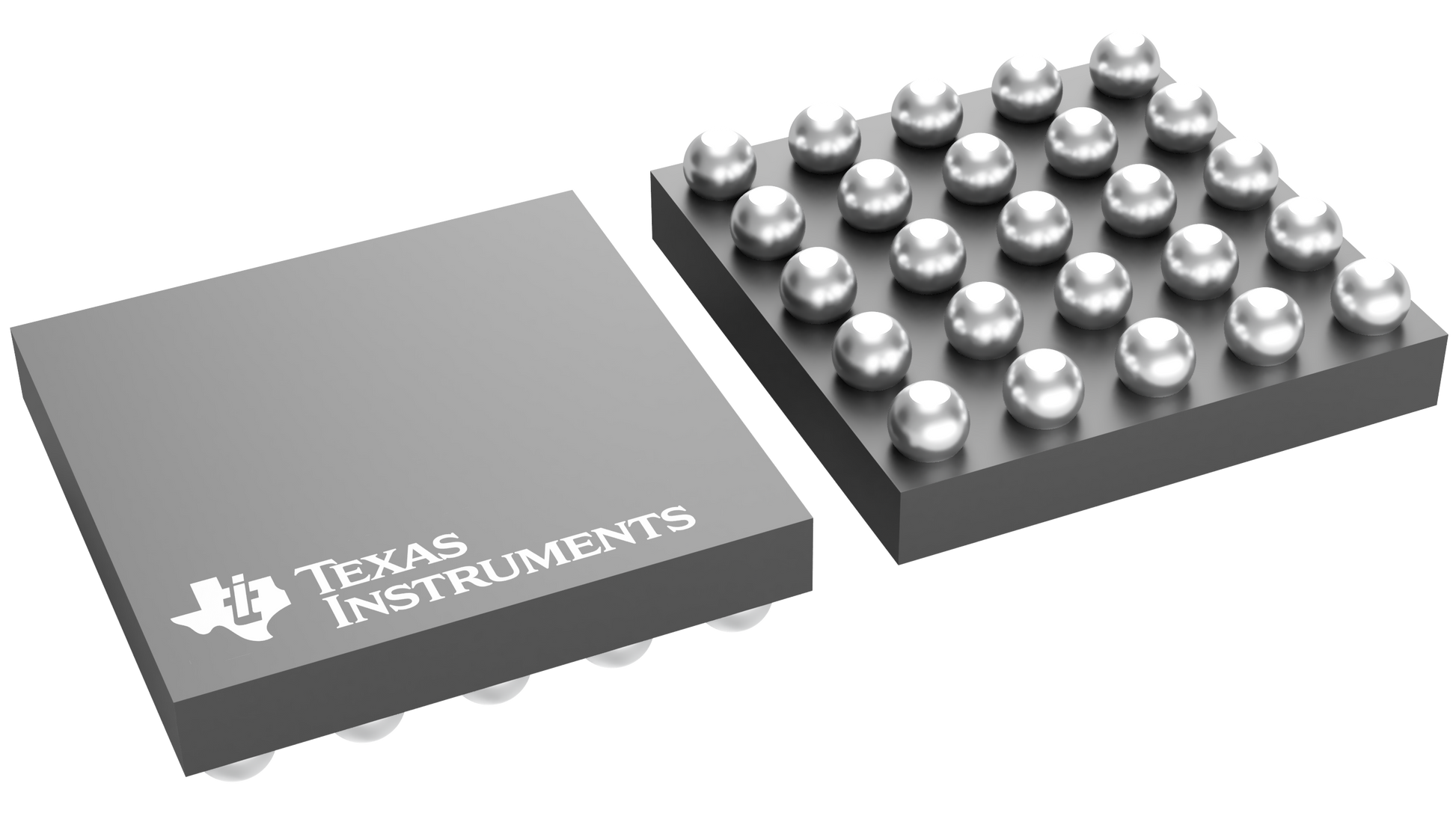

LP8553TLE/NOPB Texas Instruments - Yeehing Electronics
Four channel high-efficiency LED backlight driver for notebooks with 3.3V PWM logic level
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.038 |
| 100 — 249 | 1.684 |
| 250 — 999 | 1.209 |
| 1,000 + | 0.64 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | LED Lighting Drivers |
| RoHS | Y |
| Supply Current - Max | 6700 uA |
| Minimum Operating Temperature | - 30 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | DSBGA-25 |
| Series | LP8553 |
| Packaging | Reel |
| Features | PWM Control |
| Operating Temperature Range | - 30 C to + 85 C |
| Brand | Texas Instruments |
| Operating Supply Voltage | 5.5 V to 22 V |
| Product Type | LED Lighting Drivers |
| Factory Pack Quantity | 250 |
| Subcategory | Driver ICs |
| Unit Weight | 0.000268 oz |
For more information, please refer to datasheet
Documents
| LP8553TLE/NOPB Datasheet |
More Information
The LP8553 is a white LED driver with integrated boost converter. It has four adjustable current sinks which can be controlled by PWM input or with I2C-compatible serial interface.
