Texas Instruments

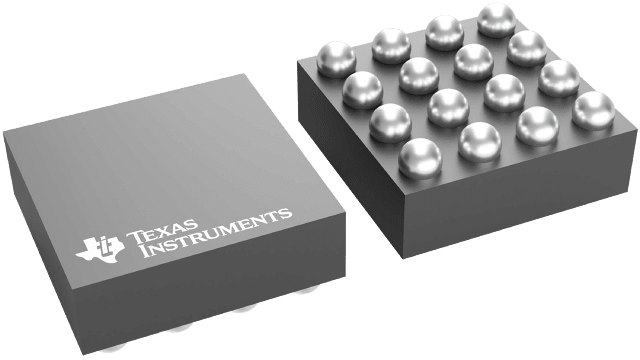

LP8557AYFQT
LP8557AYFQT
Regular price
$0.62 USD
Regular price
Sale price
$0.62 USD
Unit price
per
Couldn't load pickup availability
LP8557AYFQT Texas Instruments - Yeehing Electronics
High-efficiency LED backlight driver for Tablets
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.987 |
| 100 — 249 | 1.641 |
| 250 — 999 | 1.179 |
| 1,000 + | 0.62 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | LED Lighting Drivers |
| RoHS | Y |
| Number of Channels | 6 Channel |
| Output Current | 160 mA |
| Input Voltage | 2.7 V to 5.5 V |
| Operating Frequency | 1 MHz |
| Supply Current - Max | 2.2 mA |
| Minimum Operating Temperature | - 30 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | DSBGA-16 |
| Series | LP8557 |
| Packaging | Reel |
| Features | CABC, Edge Rate Control |
| Operating Temperature Range | - 30 C to + 85 C |
| Output Type | Current Mode |
| Type | Inductive |
| Brand | Texas Instruments |
| Topology | Boost |
| Product Type | LED Lighting Drivers |
| Factory Pack Quantity | 250 |
| Subcategory | Driver ICs |
For more information, please refer to datasheet
Documents
| LP8557AYFQT Datasheet |
More Information
The LP8557 and LP8557I are high-efficiency LED drivers each featuring an integrated DC-DC inductive boost converter and six high-precision current sinks. LP8557 is intended for applications that exclusively use a pulse width modulated (PWM) signal for controlling the brightness while LP8557I is intended for applications that can utilize an I2C master as well.
