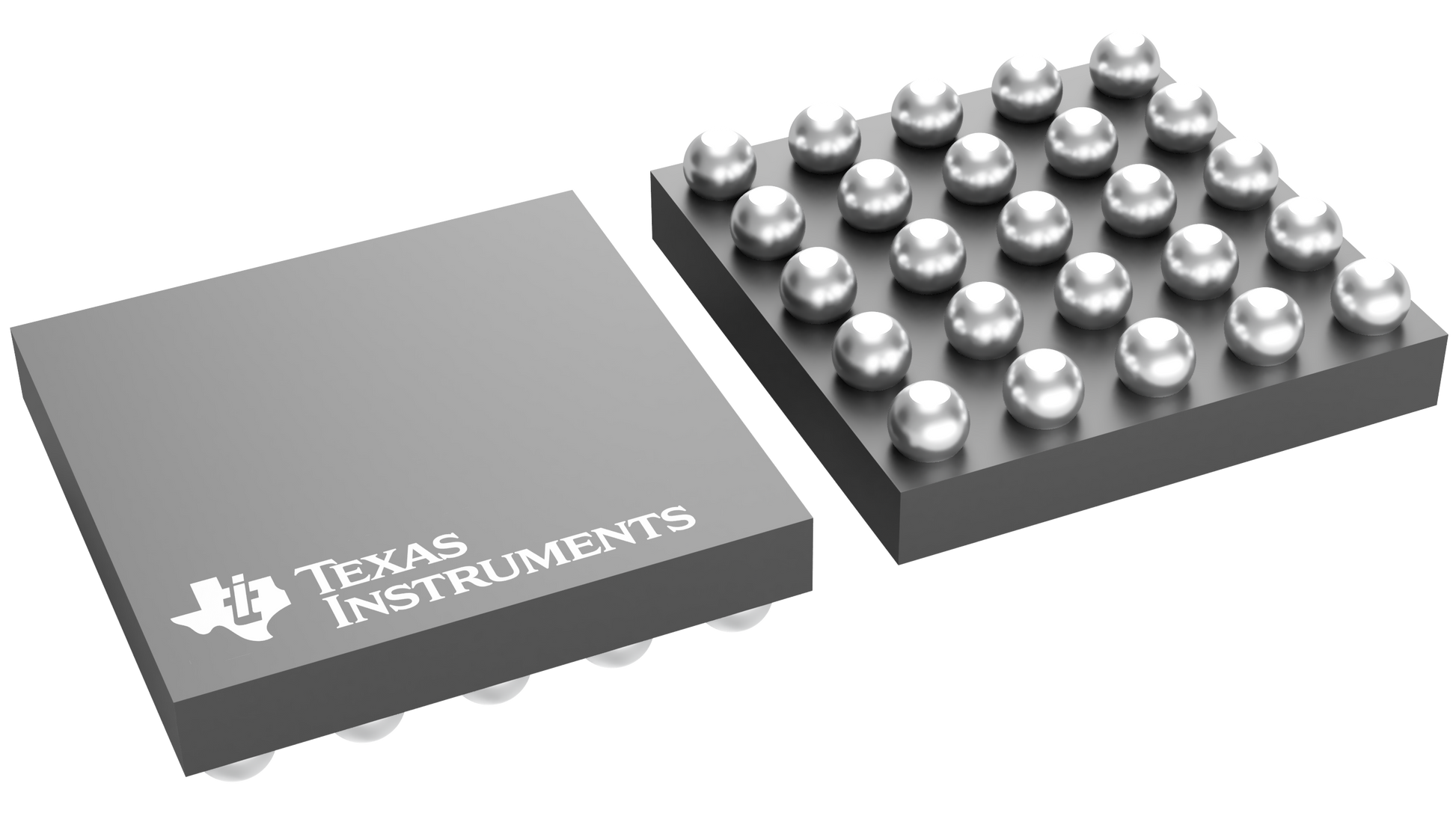

• LP8731QYZRRQ1, Texas Instruments, Yeehing Electronics
1 1

Texas Instruments

LP8731QYZRRQ1

LP8731QYZRRQ1

$0.79 USD
$0.79 USD
Sale Sold out
YeeHing #
Inventory

LP8731QYZRRQ1 Texas Instruments - Yeehing Electronics

Dual high-current step-down DC/DC & dual linear reg with I²C interface

Pricing (USD)

Quantity Unit Price
1 — 99 2.289
100 — 249 2.005
250 — 999 1.406
1,000 + 0.79

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Linear Voltage Regulators
RoHS Y
Mounting Style SMD/SMT
Package / Case DSBGA-25
Number of Outputs 4 Output
Output Voltage 887.5 mV to 1.675 V, 800 mV to 3.3 V
Output Current 300 mA, 1.2 A
Output Type Adjustable
Input Voltage MAX 5.5 V
Input Voltage MIN 2.45 V
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 125 C
Load Regulation 0.0013 %/mA, 0.011 %/mA
Line Regulation 0.089 %/V, 0.2 %/V
Series LP8731-Q1
Qualification AEC-Q100
Packaging Reel
Operating Temperature Range - 40 C to + 125 C
Product Linear Voltage Regulators
Type Dual High-Current Step-Down DC-DC and Dual Linear Regulator
Brand Texas Instruments
PSRR / Ripple Rejection - Typ 45 dB
Development Kit LP8731YZREVM
Product Type Linear Voltage Regulators
Factory Pack Quantity 3000
Subcategory PMIC - Power Management ICs

For more information, please refer to datasheet

Documents

LP8731QYZRRQ1 Datasheet

More Information

The LP8731-Q1 is a multi-function, programmable Power Management Unit (PMU), optimized for low power FPGAs, microprocessors, and DSPs. This device integrates two highly efficient 1.2-A step-down DC-DC converters with dynamic voltage management (DVM), two 300-mA linear regulators, and a 400-kHz I2C-compatible interface to allow a host controller access to the internal control registers of the LP8731-Q1. The LP8731-Q1 device additionally features programmable power-on sequencing.

View full details
