Texas Instruments
LP87524BRNFRQ1
LP87524BRNFRQ1
Regular price
$1.62 USD
Regular price
Sale price
$1.62 USD
Unit price
per
Couldn't load pickup availability

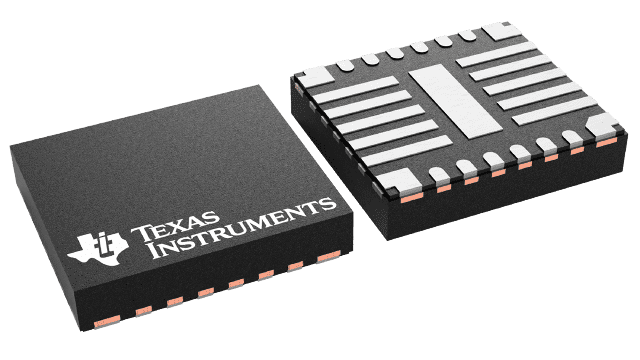

LP87524BRNFRQ1 Texas Instruments - Yeehing Electronics
Multiphase 4MHz, 4A/1.8V + 2.5A/2.3V + 1.5A/3.3V + 1.5A/1.2V buck converters for AWR and IWR MMICs
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 4.269 |
| 100 — 249 | 3.48 |
| 250 — 999 | 2.735 |
| 1,000 + | 1.62 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | VQFN-HR-26 |
| Output Voltage | 0.6 V to 3.36 V |
| Output Current | 1.5 A, 1.5 A, 2.5 A, 4 A |
| Number of Outputs | 4 Output |
| Input Voltage MAX | 5.5 V |
| Topology | Buck |
| Input Voltage MIN | 2.8 V |
| Switching Frequency | 4 MHz |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Series | LP87524B-Q1 |
| Packaging | Reel |
| Input Voltage | 2.8 V to 5.5 V |
| Operating Temperature Range | - 40 C to + 125 C |
| Type | Buck Converter |
| Brand | Texas Instruments |
| Shutdown | Shutdown |
| Load Regulation | 0.8 % |
| Product Type | Switching Voltage Regulators |
| Factory Pack Quantity | 3000 |
| Subcategory | PMIC - Power Management ICs |
| Supply Voltage - Min | 2.8 V |
| Unit Weight | 0.001764 oz |
For more information, please refer to datasheet
Documents
| LP87524BRNFRQ1 Datasheet |
More Information
The LP87524B/J/P-Q1 is designed to meet the power management requirements of the latest processors and platforms in various automotive power applications. The device contains four step-down DC-DC converter cores, which are configured as 4 single phase outputs. The device is controlled by an I2C-compatible serial interface and by enable signals.
