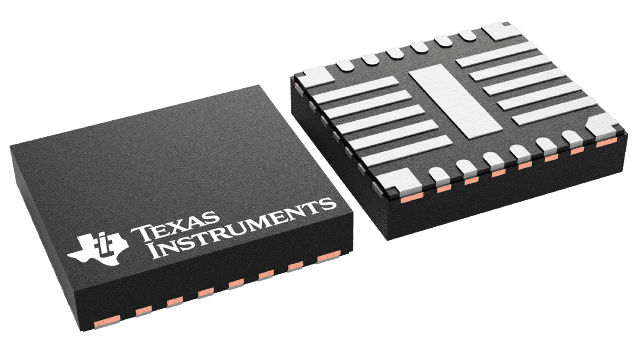

LP87524BRNFTQ1 Texas Instruments - Yeehing Electronics

Multiphase 4MHz, 4A/1.8V + 2.5A/2.3V + 1.5A/3.3V + 1.5A/1.2V buck converters for AWR and IWR MMICs

Pricing (USD)

Quantity	Unit Price
1 — 99	4.992
100 — 249	4.07
250 — 999	3.199
1,000 +	1.90

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Switching Voltage Regulators
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	VQFN-HR-26
Output Voltage	0.6 V to 3.36 V
Output Current	10 A
Number of Outputs	4 Output
Input Voltage MAX	5.5 V
Topology	Buck
Input Voltage MIN	2.8 V
Switching Frequency	4 MHz
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Series	LP87524B-Q1
Packaging	Reel
Input Voltage	2.8 V to 5.5 V
Operating Temperature Range	- 40 C to + 125 C
Type	Buck Converter
Brand	Texas Instruments
Shutdown	Shutdown
Development Kit	LP87524Q1EVM
Load Regulation	0.8 %
Operating Supply Current	19 mA
Product Type	Switching Voltage Regulators
Factory Pack Quantity	250
Subcategory	PMIC - Power Management ICs
Supply Voltage - Min	2.8 V
Unit Weight	0.001908 oz

For more information, please refer to datasheet

Documents

LP87524BRNFTQ1 Datasheet

More Information

The LP87524B/J/P-Q1 is designed to meet the power management requirements of the latest processors and platforms in various automotive power applications. The device contains four step-down DC-DC converter cores, which are configured as 4 single phase outputs. The device is controlled by an I2C-compatible serial interface and by enable signals.
