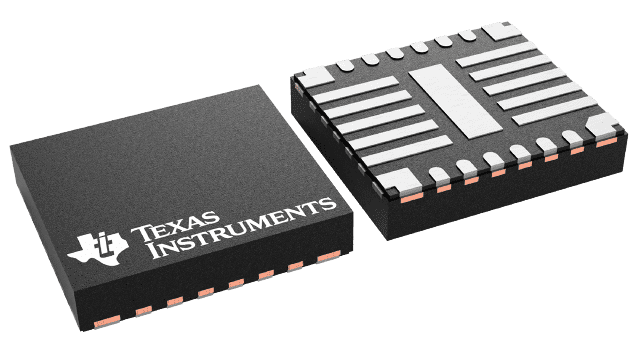

LP87561IRNFTQ1 Texas Instruments - Yeehing Electronics
Automotive multiphase 16-A buck converter with integrated switches
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 5.877 |
100 — 249 | 4.791 |
250 — 999 | 3.766 |
1,000 + | 2.24 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Switching Voltage Regulators |
RoHS | Y |
Mounting Style | SMD/SMT |
Package / Case | VQFN-26 |
Output Voltage | 0.6 V to 3.36 V |
Output Current | 16 A |
Number of Outputs | 4 Output |
Input Voltage MAX | 5.5 V |
Topology | Buck |
Input Voltage MIN | 2.8 V |
Switching Frequency | 2 MHz |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 125 C |
Series | LP87561-Q1 |
Packaging | Reel |
Input Voltage | 2.8 V to 5.5 V |
Type | DC/DC Converter |
Brand | Texas Instruments |
Shutdown | Shutdown |
Load Regulation | 0.8 % |
Product Type | Switching Voltage Regulators |
Factory Pack Quantity | 250 |
Subcategory | PMIC - Power Management ICs |
Supply Voltage - Min | 2.8 V |
For more information, please refer to datasheet
Documents
LP87561IRNFTQ1 Datasheet |
More Information
The LP8756x-Q1 device is designed to meet the power-management requirements of the latest processors and platforms in various automotive power applications. The device contains four step-down DC/DC converter cores, which are configured as a 4-phase output, 3-phase and 1-phase outputs, 2-phase and 2-phase outputs, one 2-phase and two 1-phase outputs, or four 1-phase outputs. The device is controlled by an I2C-compatible serial interface and by enable signals.
