Texas Instruments
LP875630RNFRQ1
LP875630RNFRQ1
Regular price
$1.86 USD
Regular price
Sale price
$1.86 USD
Unit price
per
Couldn't load pickup availability

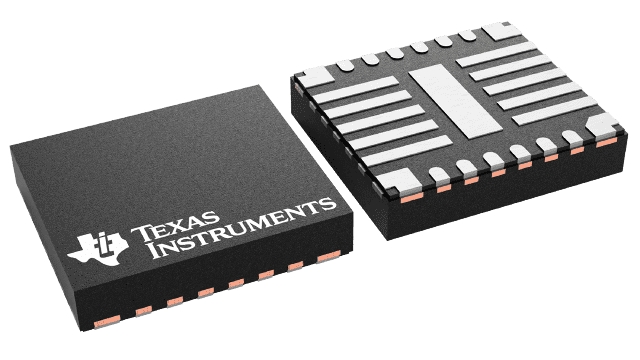

LP875630RNFRQ1 Texas Instruments - Yeehing Electronics
Automotive multiphase 8A + 4-A + 4-A buck converters with integrated switches
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 4.898 |
| 100 — 249 | 3.993 |
| 250 — 999 | 3.138 |
| 1,000 + | 1.86 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | VQFN-26 |
| Output Voltage | 0.6 V to 3.36 V |
| Output Current | 16 A |
| Number of Outputs | 4 Output |
| Input Voltage MAX | 5.5 V |
| Topology | Buck |
| Input Voltage MIN | 2.8 V |
| Switching Frequency | 2 MHz |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Series | LP87563-Q1 |
| Packaging | Reel |
| Input Voltage | 2.8 V to 5.5 V |
| Type | DC/DC Converter |
| Brand | Texas Instruments |
| Shutdown | Shutdown |
| Load Regulation | 0.8 % |
| Product Type | Switching Voltage Regulators |
| Factory Pack Quantity | 3000 |
| Subcategory | PMIC - Power Management ICs |
| Supply Voltage - Min | 2.8 V |
For more information, please refer to datasheet
Documents
| LP875630RNFRQ1 Datasheet |
More Information
The LP8756x-Q1 device is designed to meet the power-management requirements of the latest processors and platforms in various automotive power applications. The device contains four step-down DC/DC converter cores, which are configured as a 4-phase output, 3-phase and 1-phase outputs, 2-phase and 2-phase outputs, one 2-phase and two 1-phase outputs, or four 1-phase outputs. The device is controlled by an I2C-compatible serial interface and by enable signals.
