Texas Instruments
LP87565CRNFRQ1
LP87565CRNFRQ1
Regular price
$1.53 USD
Regular price
Sale price
$1.53 USD
Unit price
per
Couldn't load pickup availability

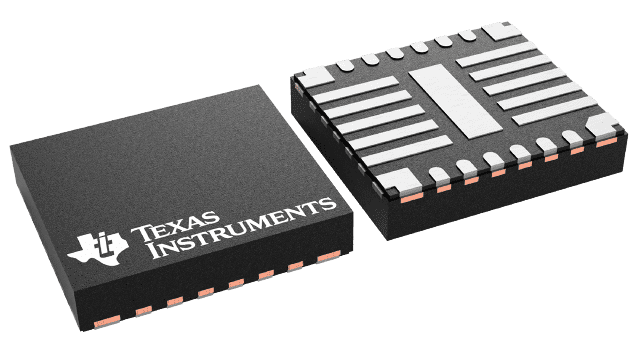

LP87565CRNFRQ1 Texas Instruments - Yeehing Electronics
Automotive multiphase dual 8-A buck converters with integrated switches
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 4.898 |
| 100 — 249 | 3.993 |
| 250 — 999 | 3.138 |
| 1,000 + | 1.53 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Power Management Specialized - PMIC |
| RoHS | Y |
| Output Voltage Range | 0.6 V to 3.36 V |
| Output Current | 16 A |
| Input Voltage Range | 2.8 V to 5.5 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Mounting Style | SMD/SMT |
| Package / Case | VQFN-HR-26 |
| Type | Buck Converter |
| Packaging | Reel |
| Application | Jacinto 6+, TDA2+ |
| Operating Temperature Range | - 40 C to + 125 C |
| Product | PMICs |
| Series | LP87565-Q1 |
| Brand | Texas Instruments |
| Development Kit | LP87565Q1EVM |
| Operating Supply Current | 6.7 uA |
| Operating Supply Voltage | 2.8 V to 5.5 V |
| Product Type | Power Management Specialized - PMIC |
| Factory Pack Quantity | 3000 |
| Subcategory | PMIC - Power Management ICs |
For more information, please refer to datasheet
Documents
| LP87565CRNFRQ1 Datasheet |
More Information
The LP8756x-Q1 device is designed to meet the power-management requirements of the latest processors and platforms in various automotive power applications. The device contains four step-down DC/DC converter cores, which are configured as a 4-phase output, 3-phase and 1-phase outputs, 2-phase and 2-phase outputs, one 2-phase and two 1-phase outputs, or four 1-phase outputs. The device is controlled by an I2C-compatible serial interface and by enable signals.
