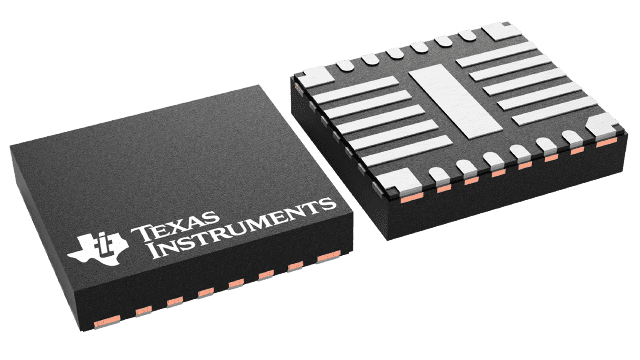

LP87565CRNFTQ1 Texas Instruments - Yeehing Electronics

Automotive multiphase dual 8-A buck converters with integrated switches

Pricing (USD)

Quantity	Unit Price
1 — 99	5.877
100 — 249	4.791
250 — 999	3.766
1,000 +	2.24

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Power Management Specialized - PMIC
RoHS	Y
Output Voltage Range	0.6 V to 3.36 V
Output Current	16 A
Input Voltage Range	2.8 V to 5.5 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Mounting Style	SMD/SMT
Package / Case	VQFN-HR-26
Type	Buck Converter
Packaging	Reel
Application	Jacinto 6+, TDA2+
Operating Temperature Range	- 40 C to + 125 C
Product	PMICs
Series	LP87565-Q1
Brand	Texas Instruments
Development Kit	LP87565Q1EVM
Operating Supply Current	6.7 uA
Operating Supply Voltage	2.8 V to 5.5 V
Product Type	Power Management Specialized - PMIC
Factory Pack Quantity	250
Subcategory	PMIC - Power Management ICs

For more information, please refer to datasheet

Documents

LP87565CRNFTQ1 Datasheet

More Information

The LP8756x-Q1 device is designed to meet the power-management requirements of the latest processors and platforms in various automotive power applications. The device contains four step-down DC/DC converter cores, which are configured as a 4-phase output, 3-phase and 1-phase outputs, 2-phase and 2-phase outputs, one 2-phase and two 1-phase outputs, or four 1-phase outputs. The device is controlled by an I2C-compatible serial interface and by enable signals.
