Texas Instruments
LP8758A1B0YFFR
LP8758A1B0YFFR
Regular price
$1.52 USD
Regular price
Sale price
$1.52 USD
Unit price
per
Couldn't load pickup availability

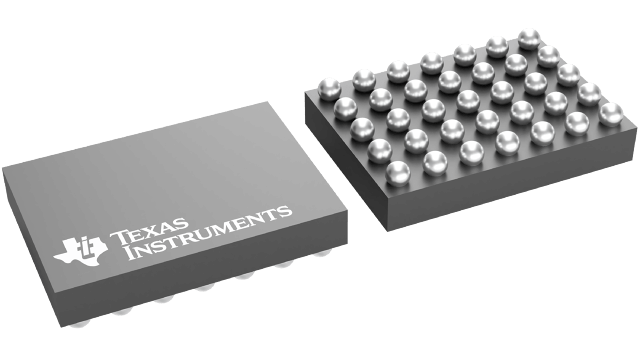

LP8758A1B0YFFR Texas Instruments - Yeehing Electronics
Four-phase, single 16A output DC-DC step-down converter
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 4.4 |
| 100 — 249 | 3.855 |
| 250 — 999 | 2.703 |
| 1,000 + | 1.52 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | DSBGA-35 |
| Output Voltage | 0.5 V to 3.36 V |
| Output Current | 16 A |
| Number of Outputs | 4 Output |
| Input Voltage MAX | 5.5 V |
| Topology | Buck |
| Input Voltage MIN | 2.5 V |
| Switching Frequency | 3 MHz |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Series | LP8758-B0 |
| Packaging | Reel |
| Height | 0.625 mm |
| Input Voltage | 5.5 V |
| Length | 2.4 mm |
| Operating Temperature Range | - 40 C to + 85 C |
| Type | DC-DC Converter |
| Width | 1.6 mm |
| Brand | Texas Instruments |
| Load Regulation | 0.3 % |
| Operating Supply Current | 6 uA |
| Product Type | Switching Voltage Regulators |
| Factory Pack Quantity | 3000 |
| Subcategory | PMIC - Power Management ICs |
| Supply Voltage - Min | 2.5 V |
| Unit Weight | 0.000254 oz |
For more information, please refer to datasheet
Documents
| LP8758A1B0YFFR Datasheet |
More Information
The LP8758 is designed to meet the power management requirements of the latest application processors in mobile phones and similar portable applications. The device contains four step-down DC/DC converter cores, which are bundled together in a single 4-phase buck converter. The device is controlled by an I2C-compatible serial interface.
