Texas Instruments

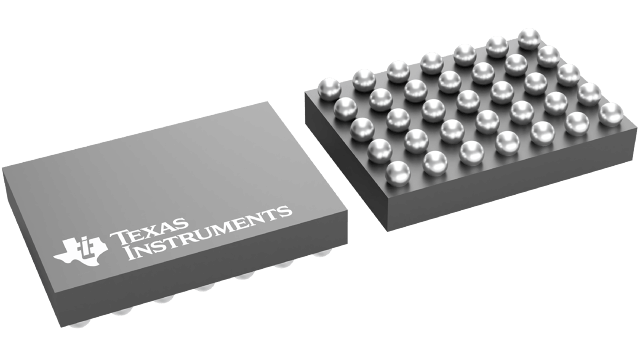

LP8758A1E0YFFR
LP8758A1E0YFFR
Regular price
$1.52 USD
Regular price
Sale price
$1.52 USD
Unit price
per
Couldn't load pickup availability
LP8758A1E0YFFR Texas Instruments - Yeehing Electronics
Four-phase, quad 4A output DC-DC step-down converter
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 4.4 |
| 100 — 249 | 3.855 |
| 250 — 999 | 2.703 |
| 1,000 + | 1.52 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | DSBGA-35 |
| Output Voltage | 500 mV to 3.36 V |
| Output Current | 4 A |
| Number of Outputs | 4 Output |
| Input Voltage MAX | 5.5 V |
| Topology | Buck |
| Input Voltage MIN | 2.5 V |
| Switching Frequency | 3.4 MHz |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Series | LP8758-E0 |
| Packaging | Reel |
| Input Voltage | 3.7 V |
| Operating Temperature Range | - 40 C to + 85 C |
| Type | Synchronous Step-Down DC-DC Converter |
| Brand | Texas Instruments |
| Shutdown | Shutdown |
| Development Kit | LP8758-E0EVM |
| Load Regulation | 0.3 % |
| Operating Supply Current | 6 uA |
| Product Type | Switching Voltage Regulators |
| Factory Pack Quantity | 3000 |
| Subcategory | PMIC - Power Management ICs |
| Supply Voltage - Min | 2.5 V |
| Unit Weight | 0.000254 oz |
For more information, please refer to datasheet
Documents
| LP8758A1E0YFFR Datasheet |
More Information
The LP8758-E0 device is designed to meet power management requirements for low-power processors in mobile phones, network cards, and similar applications. The device contains four step-down DC-DC converter cores, providing four output voltage rails. The device is controlled by an I2C-compatible serial interface.
