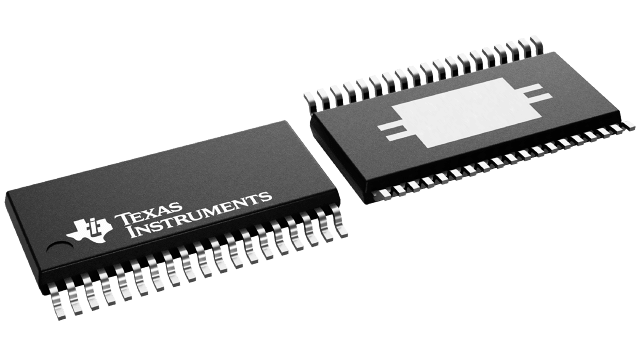

LP8863ADCPRQ1 Texas Instruments - Yeehing Electronics

LP8863-Q1 Automotive Display LED-Backlight driver with Six 150-mA channels

Pricing (USD)

Quantity	Unit Price
1 — 99	3.076
100 — 249	2.508
250 — 999	1.971
1,000 +	1.17

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	LED Lighting Drivers
RoHS	Y
Number of Channels	6 Channel
Output Current	150 mA
Input Voltage	3 V to 48 V
Operating Frequency	300 kHz to 2.2 MHz
Supply Current - Max	40 mA
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Mounting Style	SMD/SMT
Package / Case	HTSSOP-38
Qualification	AEC-Q100
Series	LP8863-Q1
Packaging	Reel
Features	Adjustable Switch Frequency, Boost Sync, Enable/Shutdown, Fault Diagnostic, Hybrid Dimming/Phase Sh
Operating Temperature Range	- 40 C to + 125 C
Product	LED Drivers
Type	LED Backlight Driver
Width	4.5 mm
Brand	Texas Instruments
Topology	Boost, Sepic
Development Kit	LP8863EVM
Moisture Sensitive	Yes
Product Type	LED Lighting Drivers
Factory Pack Quantity	2000
Subcategory	Driver ICs
Unit Weight	0.004526 oz

For more information, please refer to datasheet

Documents

LP8863ADCPRQ1 Datasheet

More Information

The LP8863-Q1 is an automotive high-efficiency LED driver with boost controller. The six high-precision current sinks support phase shifting that is automatically adjusted based on the number of channels in use. Current sink brightness can be controlled individually and globally through the SPI or I2C interface; brightness can also be globally controlled with PWM input.
