Texas Instruments
LPV542DNXR
LPV542DNXR
Regular price
$0.48 USD
Regular price
Sale price
$0.48 USD
Unit price
per
Couldn't load pickup availability

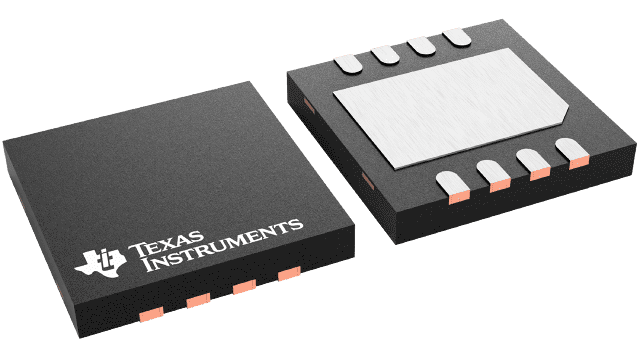

LPV542DNXR Texas Instruments - Yeehing Electronics
Dual, 5.5-V, 8-kHz, ultra low quiescent current (480-nA), 1.6-V min supply, RRIO op amp
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.342 |
| 100 — 249 | 1.108 |
| 250 — 999 | 0.796 |
| 1,000 + | 0.48 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Operational Amplifiers - Op Amps |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | X1SON-8 |
| Supply Voltage - Max | 5.5 V |
| Number of Channels | 2 Channel |
| GBP - Gain Bandwidth Product | 8 kHz |
| SR - Slew Rate | 0.0037 V/us |
| CMRR - Common Mode Rejection Ratio | 73 dB to 101 dB |
| Ib - Input Bias Current | 1 pA |
| Vos - Input Offset Voltage | 3 mV |
| Supply Voltage - Min | 1.65 V |
| Operating Supply Current | 480 nA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Shutdown | No Shutdown |
| Series | LPV542 |
| Packaging | Reel |
| Amplifier Type | General Purpose Amplifier |
| Features | EMI Hardened |
| Input Type | Rail-to-Rail |
| Output Type | Rail-to-Rail |
| Product | Operational Amplifiers |
| Brand | Texas Instruments |
| en - Input Voltage Noise Density | 250 nV/sqrt Hz |
| In - Input Noise Current Density | 65 fA/sqrt Hz |
| Ios - Input Offset Current | 100 fA |
| Product Type | Op Amps - Operational Amplifiers |
| PSRR - Power Supply Rejection Ratio | 109 dB |
| Factory Pack Quantity | 3000 |
| Subcategory | Amplifier ICs |
| Vcm - Common Mode Voltage | 0 V to 5 V |
| Unit Weight | 0.000416 oz |
For more information, please refer to datasheet
Documents
| LPV542DNXR Datasheet |
More Information
The LPV542 is an ultra-low-power, dual operational amplifier that provides 8kHz of bandwidth from 490nA of quiescent current making it well suited for battery-powered applications such as health and fitness wearables, building automation, and remote sensing nodes.
