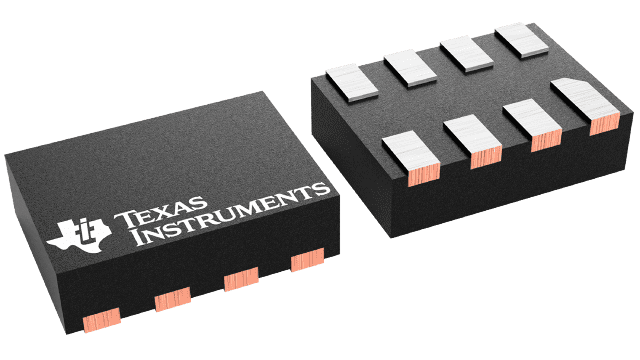

LSF0102DQER Texas Instruments - Yeehing Electronics

Dual bidirectional multi-voltage level translator

Pricing (USD)

Quantity	Unit Price
1 — 99	0.428
100 — 249	0.291
250 — 999	0.224
1,000 +	0.10

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Translation - Voltage Levels
RoHS	Y
Propagation Delay Time	1.3 ns
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Package / Case	X2SON-8
Packaging	Reel
Data Rate	200 Mb/s
Features	Output enable
Input Type	CMOS, TTL
Operating Temperature Range	- 40 C to + 125 C
Series	LSF0102
Brand	Texas Instruments
Logic Family	LSF
High Level Output Current	64 mA
Low Level Output Current	64 mA
Product Type	Translation - Voltage Levels
Factory Pack Quantity	5000
Subcategory	Logic ICs
Unit Weight	0.000035 oz

For more information, please refer to datasheet

Documents

LSF0102DQER Datasheet

More Information

The LSF family of devices supports bidirectional voltage translation without the need for DIR pin which minimizes system effort (for PMBus, I2C, SMBus, etc.). The LSF family of devices supports up to 100-MHz up translation and greater than 100-MHz down translation at ≤ 30pF cap load and up to 40-MHz up/down translation at 50pF cap load which allows the LSF family to support more consumer or telecom interfaces (MDIO or SDIO).
