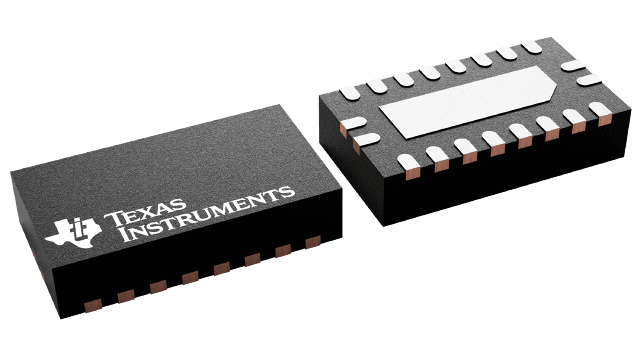

LSF0108RKSR Texas Instruments - Yeehing Electronics

Octal bidirectional multi-voltage-level translator

Pricing (USD)

Quantity	Unit Price
1 — 99	1.156
100 — 249	0.889
250 — 999	0.655
1,000 +	0.33

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Translation - Voltage Levels
RoHS	Y
Type	Bidirectional Multi-Voltage Level Translator
Propagation Delay Time	1.3 ns
Supply Voltage - Max	5 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Mounting Style	SMD/SMT
Package / Case	VQFN-20
Packaging	Reel
Data Rate	200 Mb/s
Features	Output enable
Input Type	CMOS, TTL
Operating Temperature Range	- 40 C to + 125 C
Output Type	Open Drain, Push-Pull
Series	LSF0108
Brand	Texas Instruments
Logic Family	LSF
Number of Channels	8 Channel
High Level Output Current	64 mA
Low Level Output Current	64 mA
Operating Supply Current	128 mA
Product Type	Translation - Voltage Levels
Factory Pack Quantity	3000
Subcategory	Logic ICs
Unit Weight	0.001132 oz

For more information, please refer to datasheet

Documents

LSF0108RKSR Datasheet

More Information

The LSF family of devices supports bidirectional voltage translation without the need for DIR pin which minimizes system effort (for PMBus, I2C, SMBus, etc.). The LSF family of devices supports up to 100-MHz up translation and greater than 100-MHz down translation at ≤ 30pF cap load and up to 40-MHz up/down translation at 50pF cap load which allows the LSF family to support more consumer or telecom interfaces (MDIO or SDIO).
