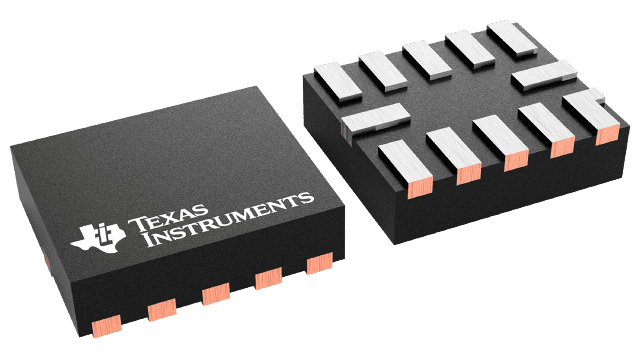

LSF0204DRUTR Texas Instruments - Yeehing Electronics
4-Bit Bidirectional Multi-Voltage Level Translator for Open-Drain & Push-Pull
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 0.768 |
100 — 249 | 0.591 |
250 — 999 | 0.435 |
1,000 + | 0.22 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Translation - Voltage Levels |
RoHS | Y |
Type | Bidirectional Multi-Voltage Level Translator |
Propagation Delay Time | 5.29 ns |
Supply Voltage - Max | 5 V |
Supply Voltage - Min | 0 V |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 125 C |
Mounting Style | SMD/SMT |
Package / Case | UQFN-12 |
Packaging | Reel |
Features | Output enable |
Input Type | CMOS, TTL |
Operating Temperature Range | - 40 C to + 125 C |
Output Type | Open Drain, Push-Pull |
Series | LSF0204D |
Brand | Texas Instruments |
Number of Channels | 1 Channel |
Operating Supply Current | 3.5 uA |
Product Type | Translation - Voltage Levels |
Factory Pack Quantity | 3000 |
Subcategory | Logic ICs |
Unit Weight | 0.000748 oz |
For more information, please refer to datasheet
Documents
LSF0204DRUTR Datasheet |
More Information
The LSF family consists of bidirectional voltage level translators that operate from 0.8 V to 4.5 V (Vref_A) and 1.8 V to 5.5 V (Vref_B). This range allows for bidirectional voltage translations between 0.8 V and 5.0 V without the need for a direction terminal in open-drain or push-pull applications. The LSF family supports level translation applications with transmission speeds greater than 100 MHz for open-drain systems that utilize a 15-pF capacitance and 165-Ω pull-up resistor.
