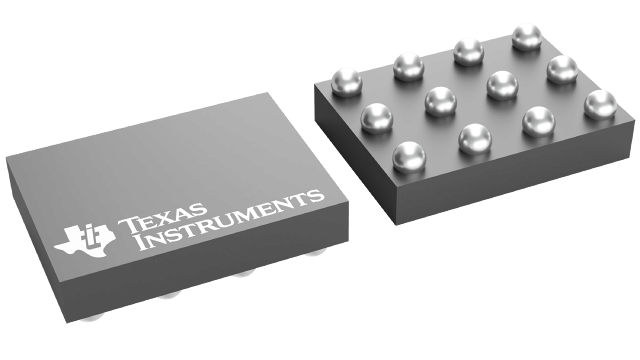

LSF0204DYZPR Texas Instruments - Yeehing Electronics
4-Bit Bidirectional Multi-Voltage Level Translator for Open-Drain & Push-Pull
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 0.785 |
100 — 249 | 0.604 |
250 — 999 | 0.445 |
1,000 + | 0.22 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
LSF0204DYZPR Datasheet |
More Information
The LSF family consists of bidirectional voltage level translators that operate from 0.8 V to 4.5 V (Vref_A) and 1.8 V to 5.5 V (Vref_B). This range allows for bidirectional voltage translations between 0.8 V and 5.0 V without the need for a direction terminal in open-drain or push-pull applications. The LSF family supports level translation applications with transmission speeds greater than 100 MHz for open-drain systems that utilize a 15-pF capacitance and 165-Ω pull-up resistor.
