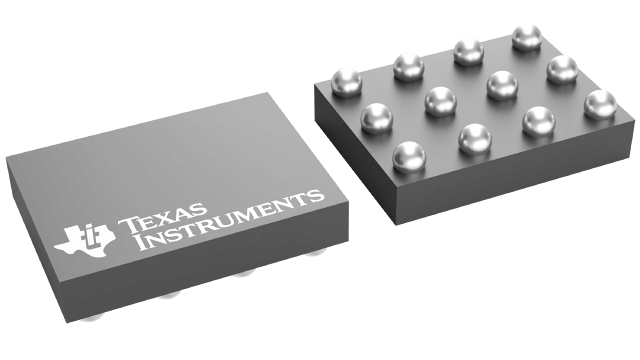

LSF0204YZPR Texas Instruments - Yeehing Electronics
4-Bit Bidirectional Multi-Voltage Level Translator for Open-Drain & Push- Pull
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.785 |
| 100 — 249 | 0.604 |
| 250 — 999 | 0.445 |
| 1,000 + | 0.19 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Translation - Voltage Levels |
| RoHS | Y |
| Type | Bidirectional Multi-Voltage Level Translator |
| Propagation Delay Time | 1.5 ns |
| Supply Voltage - Max | 4.5 V |
| Supply Voltage - Min | 0.8 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Mounting Style | SMD/SMT |
| Package / Case | DSBGA-12 |
| Packaging | Reel |
| Features | Output enable |
| Input Type | CMOS, TTL |
| Operating Temperature Range | - 40 C to + 125 C |
| Output Type | TTL |
| Series | LSF0204 |
| Brand | Texas Instruments |
| Logic Family | LSF |
| Number of Channels | 1 Channel |
| Product Type | Translation - Voltage Levels |
| Factory Pack Quantity | 3000 |
| Subcategory | Logic ICs |
| Unit Weight | 0.000092 oz |
For more information, please refer to datasheet
Documents
| LSF0204YZPR Datasheet |
More Information
The LSF family consists of bidirectional voltage level translators that operate from 0.8 V to 4.5 V (Vref_A) and 1.8 V to 5.5 V (Vref_B). This range allows for bidirectional voltage translations between 0.8 V and 5.0 V without the need for a direction terminal in open-drain or push-pull applications. The LSF family supports level translation applications with transmission speeds greater than 100 MHz for open-drain systems that utilize a 15-pF capacitance and 165-Ω pull-up resistor.
