Texas Instruments
M430FR5739SRHATEP
M430FR5739SRHATEP
Couldn't load pickup availability
M430FR5739SRHATEP Texas Instruments - Yeehing Electronics
MSP430FR5739 24 MHz ULP microcontroller with 16 KB FRAM, 1 KB SRAM, 32 IO, 10-bit ADC & comparator
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 6.25 |
| 100 — 249 | 5.096 |
| 250 — 999 | 4.005 |
| 1,000 + | 2.38 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | 16-bit Microcontrollers - MCU |
| RoHS | Y |
| Mounting Style | SMD/SMT |

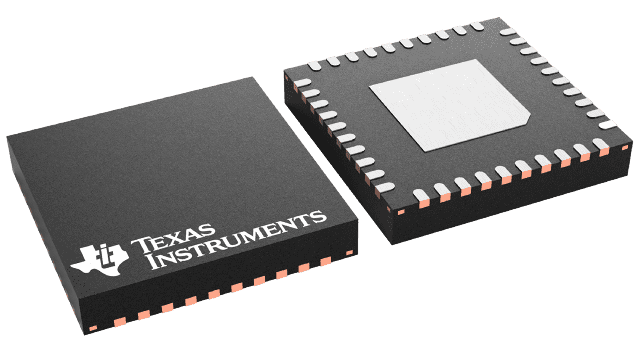

| Package / Case | VQFN-40 |
| Series | M430FR5739-EP |
| Core | MSP430 |
| Data Bus Width | 16 bit |
| Maximum Clock Frequency | 24 MHz |
| Program Memory Size | 16 kB |
| Data RAM Size | 1 kB |
| ADC Resolution | 10 bit |
| Number of I/Os | 32 I/O |
| Operating Supply Voltage | 2 V to 3.6 V |
| Minimum Operating Temperature | - 55 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Reel |
| Height | 1 mm |
| Length | 6 mm |
| Product | MCU |
| Program Memory Type | FRAM |
| Width | 6 mm |
| Brand | Texas Instruments |
| Data RAM Type | RAM |
| Data ROM Size | - |
| Data ROM Type | - |
| Interface Type | I2C, IrDA, SPI, UART |
| Analog Supply Voltage | 2 V to 3.6 V |
| DAC Resolution | - |
| Development Kit | MSP-FET430U40A, MSP-EXP430FR5739, MSP-TS430RGZ48C, MSP-TS430RHA40A |
| I/O Voltage | - |
| Moisture Sensitive | Yes |
| Number of ADC Channels | 16 Channel |
| Number of Timers/Counters | 5 Timer |
| Processor Series | MSP |
| Product Type | 16-bit Microcontrollers - MCU |
| Factory Pack Quantity | 250 |
| Subcategory | Microcontrollers - MCU |
| Supply Voltage - Max | 3.6 V |
| Supply Voltage - Min | 2 V |
| Tradename | MSP430 |
| Watchdog Timers | No Watchdog Timer |
| Part # Aliases | V62/14644-01XE |
| Unit Weight | 0.003668 oz |
For more information, please refer to datasheet
Documents
| M430FR5739SRHATEP Datasheet |
More Information
The Texas Instruments MSP430FR573x family of ultra-low-power microcontrollers consists of multiple devices that feature embedded FRAM nonvolatile memory, ultra-low-power 16-bit MSP430™ CPU, and different peripherals targeted for various applications. The architecture, FRAM, and peripherals, combined with seven low-power modes, are optimized to achieve extended battery life in portable and wireless sensing applications. FRAM is a new nonvolatile memory that combines the speed, flexibility, and endurance of SRAM with the stability and reliability of flash, all at lower total power consumption. Peripherals include a 10-bit analog-to-digital converter (ADC), a 16-channel comparator with voltage reference generation and hysteresis capabilities, three enhanced serial channels capable of I2C, SPI, or UART protocols, an internal DMA, a hardware multiplier, an RTC, five 16-bit timers, and digital I/Os.
