MC33063ADRJR Texas Instruments - Yeehing Electronics

1.5-A boost, buck, inverting switching regulator, operation from -40°C to 85°C

Pricing (USD)

Quantity	Unit Price
1 — 99	0.724
100 — 249	0.557
250 — 999	0.41
1,000 +	0.10

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Switching Voltage Regulators
RoHS	Y
Mounting Style	SMD/SMT

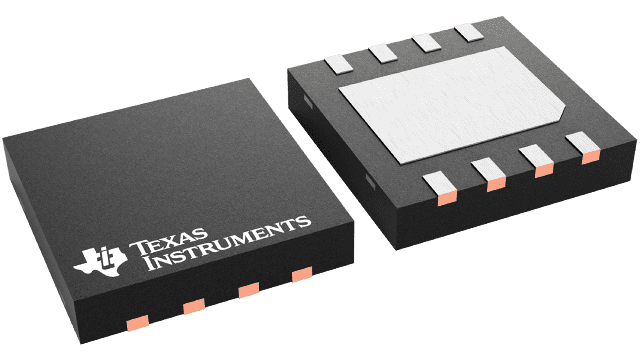

Package / Case	WSON-8
Output Voltage	1.25 V to 40 V
Output Current	1.5 A
Number of Outputs	1 Output
Input Voltage MAX	40 V
Topology	Buck, Boost, Inverting
Input Voltage MIN	3 V
Switching Frequency	100 kHz
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Series	MC33063A
Packaging	Reel
Operating Temperature Range	- 40 C to + 85 C
Type	Charge Pump
Brand	Texas Instruments
Load Regulation	10 mV +/- 0.017 %, 3 mV +/- 0.03 %
Moisture Sensitive	Yes
Operating Supply Current	4 mA
Product Type	Switching Voltage Regulators
Factory Pack Quantity	1000
Subcategory	PMIC - Power Management ICs
Unit Weight	0.000384 oz

For more information, please refer to datasheet

Documents

MC33063ADRJR Datasheet

More Information

The MC33063A and MC34063A devices are easy-to-use ICs containing all the primary circuitry needed for building simple DC-DC converters. These devices primarily consist of an internal temperature-compensated reference, a comparator, an oscillator, a PWM controller with active current limiting, a driver, and a high-current output switch. Thus, the devices require minimal external components to build converters in the boost, buck, and inverting topologies.
