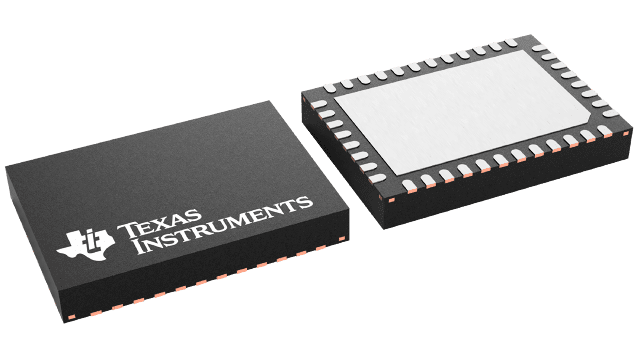

MCT8316Z0RRGFR Texas Instruments - Yeehing Electronics
40-V max, 8-A peak, sensored trapezoidal control 3-phase BLDC motor driver
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.769 |
| 100 — 249 | 2.258 |
| 250 — 999 | 1.774 |
| 1,000 + | 1.05 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
| MCT8316Z0RRGFR Datasheet |
More Information
The MCT8316Z provides a single-chip code-free sensored trapezoidal solution for customers driving 12- to 24-V brushless-DC motors. The MCT8316Z integrates three 1/2-H bridges with 40-V absolute maximum capability and a very low RDS(ON) of 95 mOhms (high-side and low-side combined) to enable high power drive capability. Current is sensed using an integrated current sensing feature which eliminates the need for external sense resistors. Power management features of an adjustable buck regulator and LDO generate the necessary voltage rails for the device and can be used to power external circuits.
