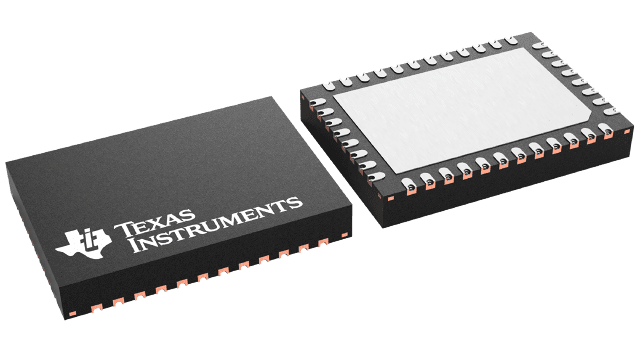

MCT8316Z0TQRGFRQ1 Texas Instruments - Yeehing Electronics

Automotive 40-V max, 8-A peak, sensored trapezoidal control 3-phase BLDC motor driver

Pricing (USD)

Quantity	Unit Price
1 — 99	3.57
100 — 249	2.91
250 — 999	2.287
1,000 +	1.36

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

MCT8316Z0TQRGFRQ1 Datasheet

More Information

The MCT8316Z-Q1 provides a single-chip code-free sensored trapezoidal solution for customers driving 12-V brushless-DC motors in automotive. The MCT8316Z-Q1 integrates three 1/2-H bridges with 40-V absolute maximum capability and a very low RDS(ON) of 95 mOhms (high-side and low-side combined) to enable high power drive capability. Current is sensed using an integrated current sensing feature which eliminates the need for external sense resistors. Power management features of an adjustable buck regulator and LDO generate the necessary voltage rails for the device and can be used to power external circuits.
