Description

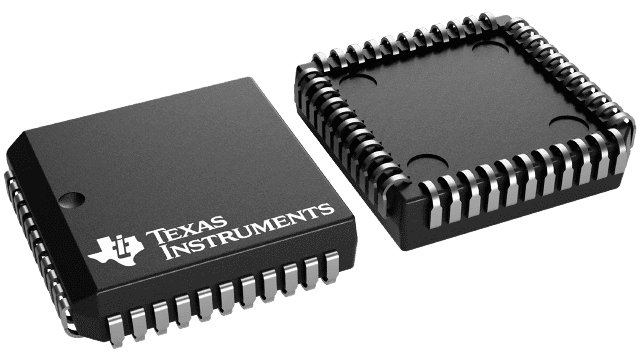

MM145453VX/NOPB Texas Instruments - Yeehing Electronics
Liquid Crystal Display Driver (LCD Driver)
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 4.274 |
| 100 — 249 | 3.485 |
| 250 — 999 | 2.739 |
| 1,000 + | 1.86 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | LCD Drivers |
| RoHS | Y |
| Series | MM145453 |
| Number of Segments | 33 Segment |
| Operating Supply Voltage | 3 V to 10 V |
| Supply Current - Max | 10 uA |
| Pd - Power Dissipation | 350 mW |
| Minimum Operating Temperature | 0 C |
| Maximum Operating Temperature | + 70 C |
| Mounting Style | SMD/SMT |
| Package / Case | PLCC-44 |
| Packaging | Reel |
| Operating Temperature Range | 0 C to + 70 C |
| Product | LCD Display Drivers |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Product Type | LCD Drivers |
| Factory Pack Quantity | 500 |
| Subcategory | Driver ICs |
| Unit Weight | 0.084185 oz |
For more information, please refer to datasheet
Documents
| MM145453VX/NOPB Datasheet |
More Information
The MM145453 is a monolithic integrated circuit utilizing CMOS metal gate, low threshold enhancement mode devices. The chip can drive up to 33 LCD segments and can be paralleled to increase this number. The chip is capable of driving a 4½ digit 7-segment display with minimal interface between the display and the data source.
