Texas Instruments
MM5452V/NOPB
MM5452V/NOPB
Regular price
$2.28 USD
Regular price
Sale price
$2.28 USD
Unit price
per
Couldn't load pickup availability
MM5452V/NOPB Texas Instruments - Yeehing Electronics
Liquid Crystal Display Drivers (LCD Driver)
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 5.984 |
| 100 — 249 | 4.878 |
| 250 — 999 | 3.834 |
| 1,000 + | 2.28 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | LCD Drivers |
| RoHS | Y |
| Series | MM5452 |
| Number of Digits | 4.5 Digit |
| Number of Segments | 32 Segment |
| Maximum Clock Frequency | 1 MHz |
| Operating Supply Voltage | 3 V to 10 V |
| Supply Current - Max | 40 uA |
| Pd - Power Dissipation | 350 mW |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |

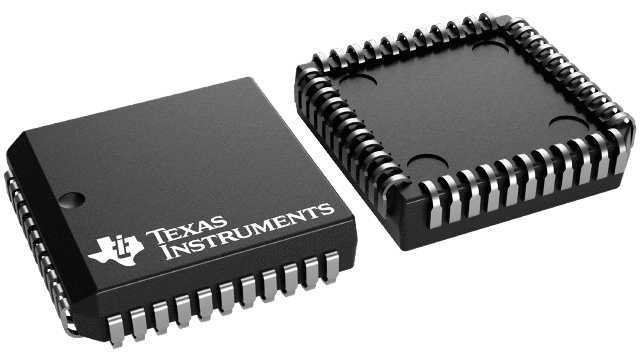

| Package / Case | PLCC-44 |
| Packaging | Tube |
| Operating Temperature Range | - 40 C to + 85 C |
| Product | LCD Drivers |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Product Type | LCD Drivers |
| Factory Pack Quantity | 25 |
| Subcategory | Driver ICs |
| Unit Weight | 0.084185 oz |
For more information, please refer to datasheet
Documents
| MM5452V/NOPB Datasheet |
More Information
The MM5452 is a monolithic integrated circuit utilizing CMOS metal gate, low threshold enhancement mode devices. It is available in a 40-pin PDIP package. The chip can drive up to 32 segments of LCD and can be paralleled to increase this number. The chip is capable of driving a 4½-digit 7-segment display with minimal interface between the display and the data source.
