Texas Instruments
MM5483V/NOPB
MM5483V/NOPB
Regular price
$1.84 USD
Regular price
Sale price
$1.84 USD
Unit price
per
Couldn't load pickup availability
MM5483V/NOPB Texas Instruments - Yeehing Electronics
Liquid Crystal Display Driver (LCD Driver)
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 4.824 |
| 100 — 249 | 3.933 |
| 250 — 999 | 3.091 |
| 1,000 + | 1.84 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Display Drivers & Controllers |
| RoHS | Y |
| Series | MM5483 |
| Product | Drivers |
| Display Type | LCD |
| Operating Supply Voltage | 3 V to 10 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |

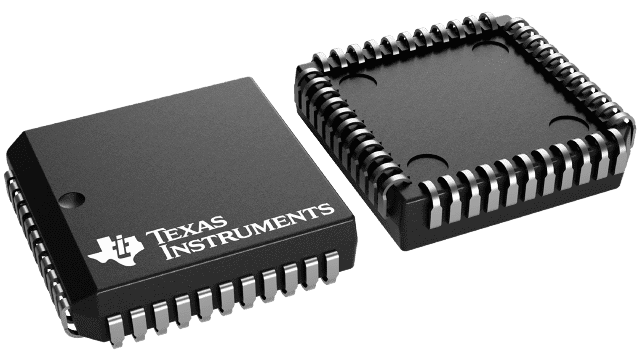

| Package / Case | PLCC-44 |
| Packaging | Tube |
| Type | LCD Bias |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Operating Supply Current | 10 uA |
| Pd - Power Dissipation | 350 mW |
| Product Type | Display Drivers & Controllers |
| Factory Pack Quantity | 25 |
| Subcategory | Driver ICs |
| Supply Voltage - Max | 10 V |
| Unit Weight | 0.084185 oz |
For more information, please refer to datasheet
Documents
| MM5483V/NOPB Datasheet |
More Information
The MM5483 is a monolithic integrated circuit utilizing CMOS metal-gate low-threshold enhancement mode devices. It is available in a 40-pin PDIP package. The chip can drive up to 31 segments of LCD and can be cascaded to increase this number. This chip is capable of driving a 4½-digit 7-segment display with minimal interface between the display and the data source.
