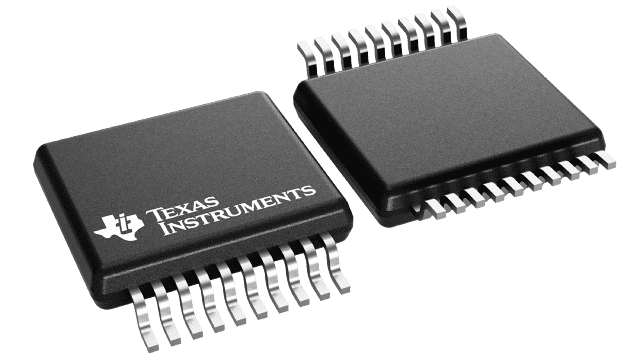

MSP430F1121AIDGV Texas Instruments - Yeehing Electronics

8 MHz MCU with 4KB Flash, 256B SRAM, timer, comparator

Pricing (USD)

Quantity	Unit Price
1 — 99	4.014
100 — 249	3.517
250 — 999	2.466
1,000 +	1.39

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	16-bit Microcontrollers - MCU
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	TVSOP-20
Series	MSP430F1121A
Core	MSP430
Data Bus Width	16 bit
Maximum Clock Frequency	8 MHz
Program Memory Size	4 kB
Data RAM Size	256 B
Number of I/Os	14 I/O
Operating Supply Voltage	1.8 V to 3.6 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Packaging	Reel
Height	1.05 mm
Length	5 mm
Program Memory Type	Flash
Width	4.4 mm
Brand	Texas Instruments
Data ROM Size	256 B
Data ROM Type	Flash
Interface Type	UART
Moisture Sensitive	Yes
Number of Timers/Counters	1 Timer
Processor Series	1 Series
Product Type	16-bit Microcontrollers - MCU
Factory Pack Quantity	2000
Subcategory	Microcontrollers - MCU
Tradename	MSP430
Watchdog Timers	No Watchdog Timer
Unit Weight	0.002123 oz

For more information, please refer to datasheet

Documents

MSP430F1121AIDGV Datasheet

More Information

The Texas Instruments MSP430 family of ultralow power microcontrollers consist of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low power modes is optimized to achieve extended battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that attribute to maximum code efficiency. The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 6µs.
