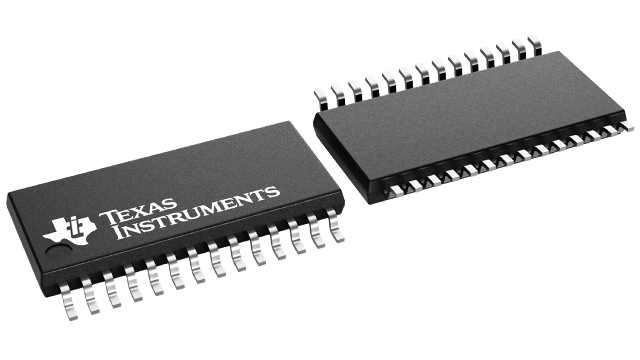

MSP430F123IPW Texas Instruments - Yeehing Electronics

8 MHz MCU with 8KB Flash, 256B SRAM, timer, comparator, SPI/UART

Pricing (USD)

Quantity	Unit Price
1 — 99	4.945
100 — 249	4.333
250 — 999	3.038
1,000 +	1.71

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	16-bit Microcontrollers - MCU
Mounting Style	SMD/SMT
Package / Case	TSSOP-28
Series	MSP430F123
Program Memory Size	8 kB
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Packaging	Reel
Brand	Texas Instruments
Product Type	16-bit Microcontrollers - MCU
Factory Pack Quantity	2000
Subcategory	Microcontrollers - MCU
Tradename	MSP430
Watchdog Timers	No Watchdog Timer
Part # Aliases	MSP430F123IPWR

For more information, please refer to datasheet

Documents

MSP430F123IPW Datasheet

More Information

The Texas Instruments MSP430 family of ultralow power microcontrollers consist of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low power modes is optimized to achieve extended battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that attribute to maximum code efficiency. The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 6µs.
