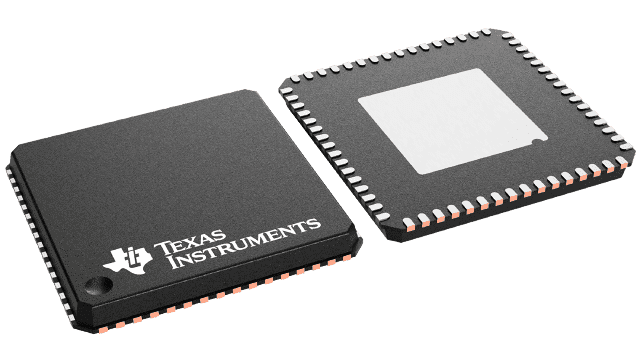

MSP430F147IRTDR Texas Instruments - Yeehing Electronics
8 MHz MCU with 32 KB Flash, 1KB SRAM, 12-bit ADC, comparator, SPI/UART
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 8.722 |
100 — 249 | 7.11 |
250 — 999 | 5.588 |
1,000 + | 3.32 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Minimum Operating Temperature | -40 |
Maximum Operating Temperature | 85 |
Factory Pack Quantity | 2,500 |
Package | Pins | VQFNP (RTD) | 64 |
For more information, please refer to datasheet
Documents
MSP430F147IRTDR Datasheet |
More Information
The Texas Instruments MSP430™ family of ultra-low-power microcontrollers (MCUs) consist of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low-power modes is optimized to achieve extended battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that attribute to maximum code efficiency. The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 6 µs.
