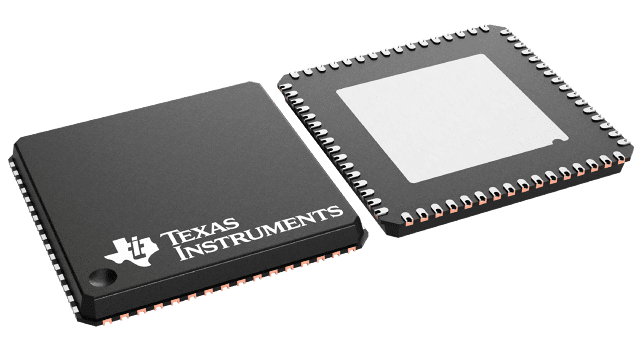

MSP430F149IRTDT Texas Instruments - Yeehing Electronics

8 MHz MCU with 60KB Flash, 2KB SRAM, 12-bit ADC, comparator, SPI/UART

Pricing (USD)

Quantity	Unit Price
1 — 99	10.996
100 — 249	9.605
250 — 999	7.406
1,000 +	5.30

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	16-bit Microcontrollers - MCU
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	VQFNP-64
Series	MSP430F149
Core	MSP430
Data Bus Width	16 bit
Maximum Clock Frequency	8 MHz
Program Memory Size	60 kB
Data RAM Size	2 kB
ADC Resolution	12 bit
Number of I/Os	48 I/O
Operating Supply Voltage	1.8 V to 3.6 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Packaging	Reel
Height	0.88 mm
Length	9 mm
Program Memory Type	Flash
Width	9 mm
Brand	Texas Instruments
Data ROM Size	256 B
Data ROM Type	Flash
Interface Type	Serial
Moisture Sensitive	Yes
Number of ADC Channels	8 Channel
Number of Timers/Counters	2 Timer
Processor Series	1 Series
Product Type	16-bit Microcontrollers - MCU
Factory Pack Quantity	250
Subcategory	Microcontrollers - MCU
Tradename	MSP430
Watchdog Timers	No Watchdog Timer
Unit Weight	0.007277 oz

For more information, please refer to datasheet

Documents

MSP430F149IRTDT Datasheet

More Information

The Texas Instruments MSP430™ family of ultra-low-power microcontrollers (MCUs) consist of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low-power modes is optimized to achieve extended battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that attribute to maximum code efficiency. The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 6 µs.
