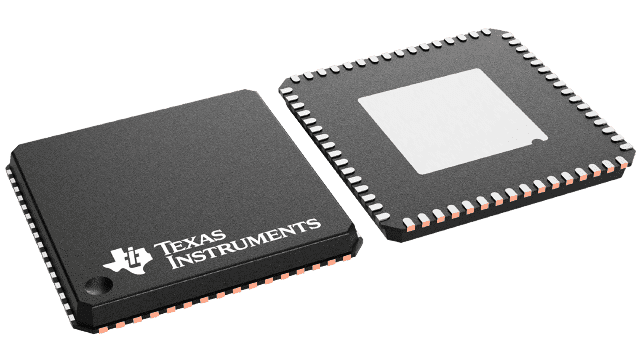

MSP430F169IRTDR Texas Instruments - Yeehing Electronics
8 MHz MCU with 60KB Flash, 2KB SRAM, 12-bit ADC, Dual 12-bit DAC, comparator, DMA, I2C/SPI/UART
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 11.733 |
100 — 249 | 10.249 |
250 — 999 | 7.902 |
1,000 + | 4.95 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | 16-bit Microcontrollers - MCU |
RoHS | Y |
Mounting Style | SMD/SMT |
Package / Case | VQFNP-64 |
Series | MSP430F169 |
Core | MSP430 |
Data Bus Width | 16 bit |
Maximum Clock Frequency | 8 MHz |
Program Memory Size | 60 kB |
Data RAM Size | 2 kB |
ADC Resolution | 12 bit |
Number of I/Os | 48 I/O |
Operating Supply Voltage | 1.8 V to 3.6 V |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 85 C |
Packaging | Reel |
Height | 0.88 mm |
Length | 9 mm |
Program Memory Type | Flash |
Width | 9 mm |
Brand | Texas Instruments |
Interface Type | Serial |
Moisture Sensitive | Yes |
Number of ADC Channels | 8 Channel |
Number of Timers/Counters | 2 Timer |
Processor Series | 1 Series |
Product Type | 16-bit Microcontrollers - MCU |
Factory Pack Quantity | 2500 |
Subcategory | Microcontrollers - MCU |
Tradename | MSP430 |
Watchdog Timers | No Watchdog Timer |
Unit Weight | 0.007277 oz |
For more information, please refer to datasheet
Documents
MSP430F169IRTDR Datasheet |
More Information
The Texas Instruments MSP430 family of ultralow power microcontrollers consist of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low power modes is optimized to achieve extended battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency. The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 6 µs.
