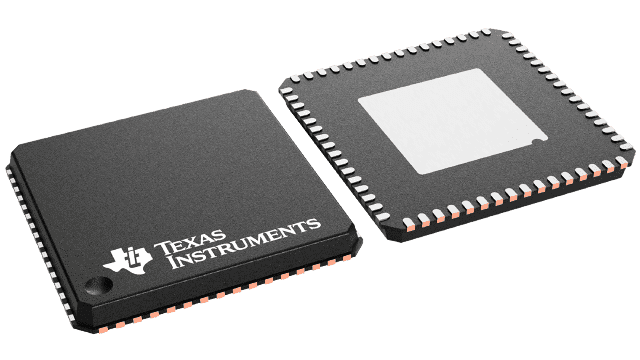

MSP430F169IRTDT Texas Instruments - Yeehing Electronics

8 MHz MCU with 60KB Flash, 2KB SRAM, 12-bit ADC, Dual 12-bit DAC, comparator, DMA, I2C/SPI/UART

Pricing (USD)

Quantity	Unit Price
1 — 99	14.08
100 — 249	12.299
250 — 999	9.483
1,000 +	5.94

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	16-bit Microcontrollers - MCU
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	VQFNP-64
Series	MSP430F169
Core	MSP430
Data Bus Width	16 bit
Maximum Clock Frequency	8 MHz
Program Memory Size	60 kB
Data RAM Size	2 kB
ADC Resolution	12 bit
Number of I/Os	48 I/O
Operating Supply Voltage	1.8 V to 3.6 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Packaging	Reel
Height	0.88 mm
Length	9 mm
Program Memory Type	Flash
Width	9 mm
Brand	Texas Instruments
Data RAM Type	SRAM
Interface Type	SPI, UART, USART
Moisture Sensitive	Yes
Number of ADC Channels	8 Channel
Number of Timers/Counters	2 Timer
Processor Series	MSP430F169
Product Type	16-bit Microcontrollers - MCU
Factory Pack Quantity	250
Subcategory	Microcontrollers - MCU
Tradename	MSP430
Watchdog Timers	No Watchdog Timer
Unit Weight	0.007277 oz

For more information, please refer to datasheet

Documents

MSP430F169IRTDT Datasheet

More Information

The Texas Instruments MSP430 family of ultralow power microcontrollers consist of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low power modes is optimized to achieve extended battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency. The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 6 µs.
