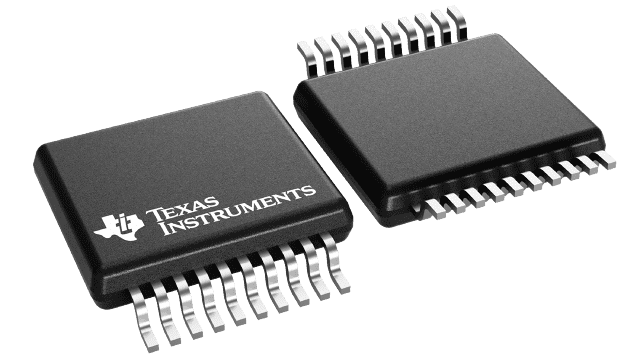

MSP430F2111TDGVR


YeeHing #: Y010-MSP430F2111TDGVR
Inventory: 8000

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

MSP430F2111TDGVR Texas Instruments - Yeehing Electronics

16 MHz MCU with 2KB Flash, 128B SRAM, timer, comparator

Pricing (USD)

Quantity Unit Price
1 — 99 2.065
100 — 249 1.706
250 — 999 1.225
1,000 + 0.74

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category 16-bit Microcontrollers - MCU
RoHS Y
Mounting Style SMD/SMT
Package / Case TVSOP-20
Series MSP430F2111
Core MSP430
Data Bus Width 16 bit
Maximum Clock Frequency 16 MHz
Program Memory Size 2 kB
Data RAM Size 128 B
ADC Resolution No ADC
Number of I/Os 16 I/O
Operating Supply Voltage 1.8 V to 3.6 V
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 105 C
Packaging Reel
Height 1.05 mm
Length 5 mm
Program Memory Type Flash
Width 4.4 mm
Brand Texas Instruments
Interface Type UART
Moisture Sensitive Yes
Number of Timers/Counters 1 Timer
Processor Series 2 Series
Product Type 16-bit Microcontrollers - MCU
Factory Pack Quantity 2000
Subcategory Microcontrollers - MCU
Tradename MSP430
Watchdog Timers No Watchdog Timer
Unit Weight 0.002123 oz

For more information, please refer to datasheet

Documents

MSP430F2111TDGVR Datasheet

More Information

The Texas Instruments MSP430 family of ultra-low-power microcontrollers consist of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low-power modes, is optimized to achieve extended battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency.The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 1 µs.
