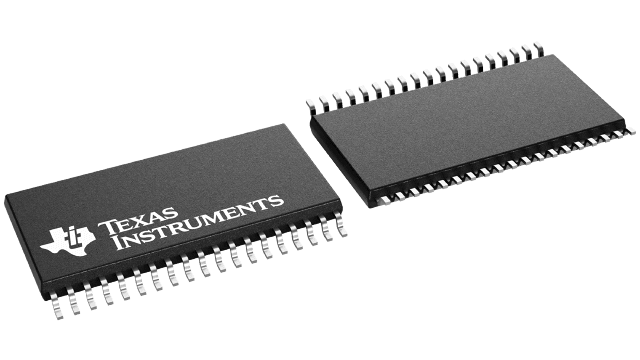

MSP430F2234IDAR Texas Instruments - Yeehing Electronics

16 MHz MCU with 8KB Flash, 512B SRAM, 10-bit ADC, 2 OpAmp, I2C/SPI/UART

Pricing (USD)

Quantity	Unit Price
1 — 99	3.709
100 — 249	3.25
250 — 999	2.278
1,000 +	2.06

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	16-bit Microcontrollers - MCU
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	TSSOP-38
Series	MSP430F2234
Core	MSP430
Data Bus Width	16 bit
Maximum Clock Frequency	16 MHz
Program Memory Size	8 kB
Data RAM Size	512 B
ADC Resolution	10 bit
Number of I/Os	32 I/O
Operating Supply Voltage	1.8 V to 3.6 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 105 C
Packaging	Reel
Height	1.15 mm
Length	12.5 mm
Product	MCU
Program Memory Type	Flash
Width	6.2 mm
Brand	Texas Instruments
Interface Type	USCI
Moisture Sensitive	Yes
Number of ADC Channels	12 Channel
Number of Timers/Counters	3 Timer
Processor Series	2 Series
Product Type	16-bit Microcontrollers - MCU
Factory Pack Quantity	2000
Subcategory	Microcontrollers - MCU
Tradename	MSP430
Watchdog Timers	No Watchdog Timer
Unit Weight	0.007189 oz

For more information, please refer to datasheet

Documents

MSP430F2234IDAR Datasheet

More Information

The Texas Instruments MSP430 family of ultra-low-power microcontrollers consist of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low-power modes is optimized to achieve extended battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency. The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 1 µs.
