MSP430F2252IYFFR Texas Instruments - Yeehing Electronics

16 MHz MCU with 16KB Flash, 512B SRAM, 10-bit ADC, 1 OpAmp, UART/SPI/I2C

Pricing (USD)

Quantity	Unit Price
1 — 99	3.993
100 — 249	3.255
250 — 999	2.558
1,000 +	1.52

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	16-bit Microcontrollers - MCU
RoHS	Y
Mounting Style	SMD/SMT

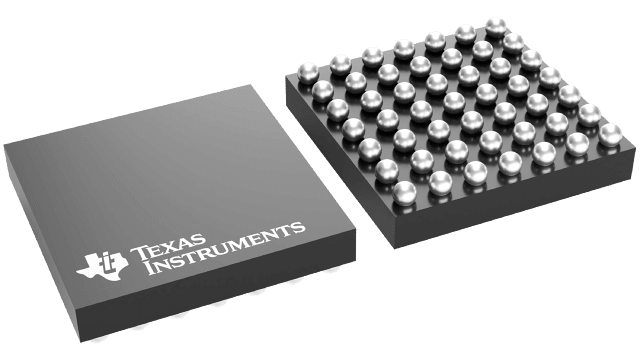

Package / Case	DSBGA-49
Series	MSP430F2252
Core	MSP430
Data Bus Width	16 bit
Maximum Clock Frequency	16 MHz
Program Memory Size	16 kB
Data RAM Size	512 B
ADC Resolution	10 bit
Number of I/Os	32 I/O
Operating Supply Voltage	1.8 V to 3.6 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 105 C
Packaging	Reel
Program Memory Type	Flash
Brand	Texas Instruments
Data RAM Type	SRAM
Data ROM Size	1 kB
Data ROM Type	Flash
Interface Type	I2C, SPI, UART
Number of ADC Channels	12 Channel
Number of Timers/Counters	2 Timer
Processor Series	2 Series
Product Type	16-bit Microcontrollers - MCU
Factory Pack Quantity	2500
Subcategory	Microcontrollers - MCU
Tradename	MSP430
Watchdog Timers	No Watchdog Timer

For more information, please refer to datasheet

Documents

MSP430F2252IYFFR Datasheet

More Information

The Texas Instruments MSP430 family of ultra-low-power microcontrollers consist of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low-power modes is optimized to achieve extended battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency. The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 1 µs.
