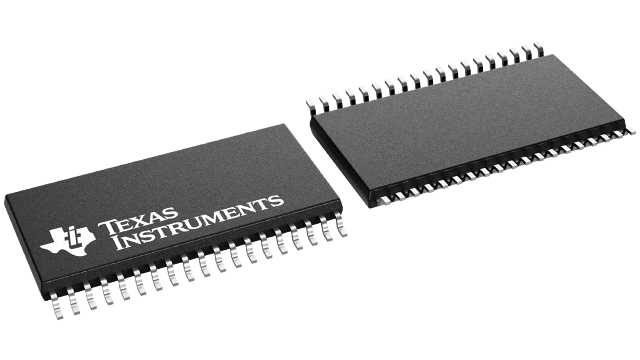

MSP430F2254TDA


YeeHing #: Y010-MSP430F2254TDA
Inventory: 3600

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

MSP430F2254TDA Texas Instruments - Yeehing Electronics

16 MHz MCU with 16KB Flash, 512B SRAM, 10-bit ADC, I2C/SPI/UART

Pricing (USD)

Quantity Unit Price
1 — 99 5.207
100 — 249 4.245
250 — 999 3.337
1,000 + 1.98

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category 16-bit Microcontrollers - MCU
RoHS Y
Mounting Style SMD/SMT
Package / Case TSSOP-38
Series MSP430F2254
Core MSP430
Data Bus Width 16 bit
Maximum Clock Frequency 16 MHz
Program Memory Size 16 kB
Data RAM Size 512 B
ADC Resolution 10 bit
Number of I/Os 32 I/O
Operating Supply Voltage 1.8 V to 3.6 V
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 105 C
Packaging Tube
Height 1.15 mm
Length 12.5 mm
Product MCU
Program Memory Type Flash
Width 6.2 mm
Brand Texas Instruments
Interface Type USCI
Moisture Sensitive Yes
Number of ADC Channels 12 Channel
Number of Timers/Counters 3 Timer
Processor Series 2 Series
Product Type 16-bit Microcontrollers - MCU
Factory Pack Quantity 40
Subcategory Microcontrollers - MCU
Tradename MSP430
Watchdog Timers No Watchdog Timer
Unit Weight 0.007189 oz

For more information, please refer to datasheet

Documents

MSP430F2254TDA Datasheet

More Information

The Texas Instruments MSP430 family of ultra-low-power microcontrollers consist of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low-power modes is optimized to achieve extended battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency. The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 1 µs.
