MSP430F2272IRHAR Texas Instruments - Yeehing Electronics

16 MHz MCU with 32KB Flash, 512B SRAM, 10-bit ADC, I2C/SPI/UART

Pricing (USD)

Quantity	Unit Price
1 — 99	4.284
100 — 249	3.492
250 — 999	2.745
1,000 +	1.63

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	16-bit Microcontrollers - MCU
RoHS	Y
Mounting Style	SMD/SMT

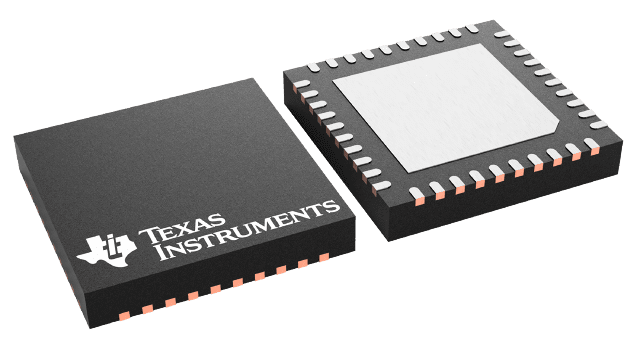

Package / Case	VQFN-40
Series	MSP430F2272
Core	MSP430
Data Bus Width	16 bit
Maximum Clock Frequency	16 MHz
Program Memory Size	32 kB
Data RAM Size	1 kB
ADC Resolution	10 bit
Number of I/Os	32 I/O
Operating Supply Voltage	1.8 V to 3.6 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 105 C
Packaging	Reel
Height	0.9 mm
Length	6 mm
Program Memory Type	Flash
Width	6 mm
Brand	Texas Instruments
Interface Type	USCI
Moisture Sensitive	Yes
Number of ADC Channels	12 Channel
Number of Timers/Counters	3 Timer
Processor Series	2 Series
Product Type	16-bit Microcontrollers - MCU
Factory Pack Quantity	2500
Subcategory	Microcontrollers - MCU
Tradename	MSP430
Watchdog Timers	No Watchdog Timer
Part # Aliases	MSP430A142IRHAR
Unit Weight	0.003668 oz

For more information, please refer to datasheet

Documents

MSP430F2272IRHAR Datasheet

More Information

The Texas Instruments MSP430 family of ultra-low-power microcontrollers consist of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low-power modes is optimized to achieve extended battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency. The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 1 µs.
