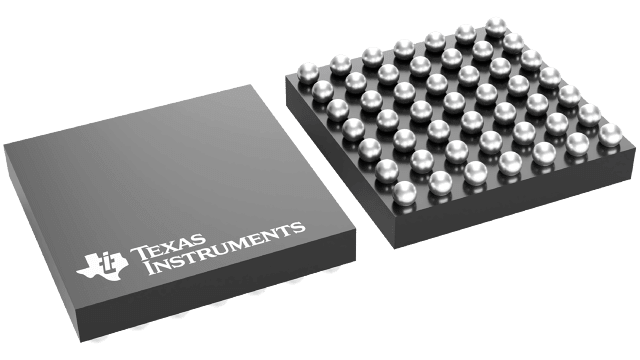

MSP430F2272IYFFR Texas Instruments - Yeehing Electronics

16 MHz MCU with 32KB Flash, 512B SRAM, 10-bit ADC, I2C/SPI/UART

Pricing (USD)

Quantity	Unit Price
1 — 99	4.497
100 — 249	3.666
250 — 999	2.881
1,000 +	1.71

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	16-bit Microcontrollers - MCU
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	DSBGA-49
Core	MSP430
Data Bus Width	16 bit
Maximum Clock Frequency	16 MHz
Program Memory Size	32 kB
Data RAM Size	1 kB
Operating Supply Voltage	1.8 V to 3.6 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 105 C
Series	MSP430F2272
Packaging	Reel
Brand	Texas Instruments
Processor Series	2 Series
Product Type	16-bit Microcontrollers - MCU
Factory Pack Quantity	2500
Subcategory	Microcontrollers - MCU
Tradename	MSP430
Watchdog Timers	No Watchdog Timer
Unit Weight	0.000430 oz

For more information, please refer to datasheet

Documents

MSP430F2272IYFFR Datasheet

More Information

The Texas Instruments MSP430 family of ultra-low-power microcontrollers consist of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low-power modes is optimized to achieve extended battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency. The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 1 µs.
