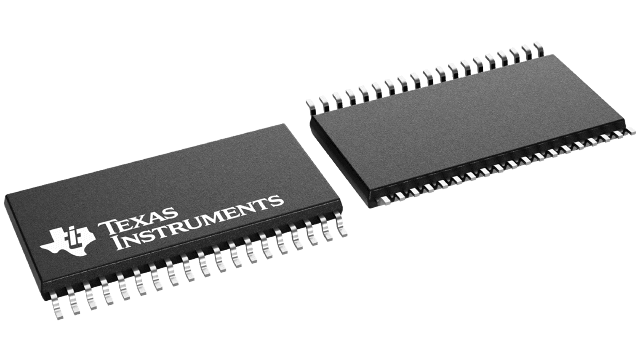

MSP430F2274MDATEP Texas Instruments - Yeehing Electronics

16-bit ultra-low-power microcontroller, 32kB Flash, 1K RAM

Pricing (USD)

Quantity	Unit Price
1 — 99	11.939
100 — 249	10.428
250 — 999	8.041
1,000 +	5.03

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	16-bit Microcontrollers - MCU
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	LQFP-64
Series	MSP430F2616
Core	MSP430
Data Bus Width	16 bit
Maximum Clock Frequency	16 MHz
Program Memory Size	92 kB
Data RAM Size	4 kB
ADC Resolution	12 bit
Number of I/Os	48 I/O
Operating Supply Voltage	1.8 V to 3.6 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 105 C
Packaging	Tube
Height	1.4 mm
Length	10 mm
Product	MCU
Program Memory Type	Flash
Width	10 mm
Brand	Texas Instruments
Interface Type	Serial
Moisture Sensitive	Yes
Number of ADC Channels	8 Channel
Number of Timers/Counters	2 Timer
Processor Series	2 Series
Product Type	16-bit Microcontrollers - MCU
Factory Pack Quantity	160
Subcategory	Microcontrollers - MCU
Tradename	MSP430
Watchdog Timers	No Watchdog Timer
Unit Weight	0.012088 oz

For more information, please refer to datasheet

Documents

MSP430F2274MDATEP Datasheet

More Information

The Texas Instruments MSP430 family of ultralow power microcontrollers consists of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low power modes, is optimized to achieve extended battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that attribute to maximum code efficiency. The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 1 µs.
