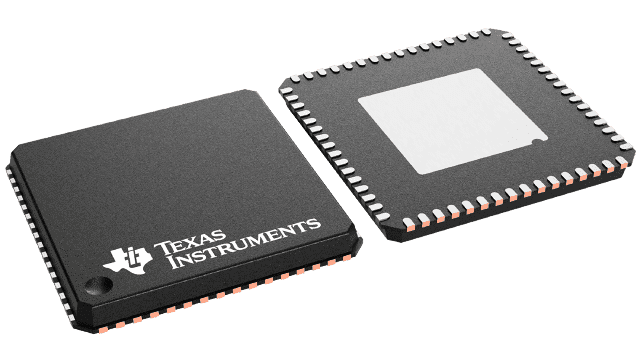

MSP430F413IRTDR Texas Instruments - Yeehing Electronics

8 MHz MCU with 8KB Flash, 256B SRAM, timer, comparator, 96 seg LCD

Pricing (USD)

Quantity	Unit Price
1 — 99	3.175
100 — 249	2.782
250 — 999	1.951
1,000 +	1.10

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	16-bit Microcontrollers - MCU
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	VQFNP-64
Series	MSP430F413
Core	MSP430
Data Bus Width	16 bit
Maximum Clock Frequency	16 MHz
Program Memory Size	8 kB
Data RAM Size	256 B
ADC Resolution	No ADC
Number of I/Os	48 I/O
Operating Supply Voltage	1.8 V to 3.6 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Packaging	Reel
Height	0.88 mm
Length	9 mm
Program Memory Type	Flash
Width	9 mm
Brand	Texas Instruments
Data ROM Size	256 B
Data ROM Type	Flash
Interface Type	UART
Moisture Sensitive	Yes
Number of Timers/Counters	1 Timer
Processor Series	4 Series
Product Type	16-bit Microcontrollers - MCU
Factory Pack Quantity	2500
Subcategory	Microcontrollers - MCU
Tradename	MSP430
Watchdog Timers	No Watchdog Timer
Unit Weight	0.007277 oz

For more information, please refer to datasheet

Documents

MSP430F413IRTDR Datasheet

More Information

The Texas Instruments MSP430 family of ultra-low-power microcontrollers consists of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low power modes, is optimized to achieve extended battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency. The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 6 µs.
