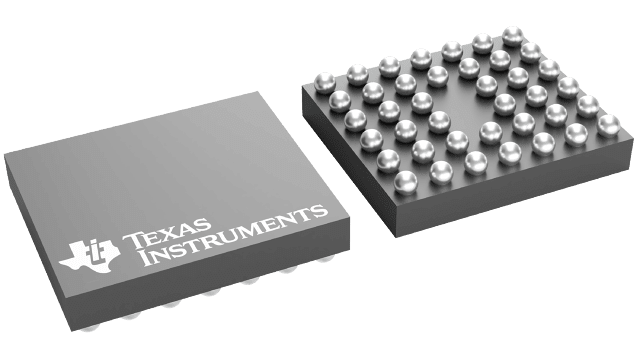

MSP430F5151IYFFT Texas Instruments - Yeehing Electronics

25 MHz MCU with 16KB Flash, 2KB SRAM, comparator, DMA, 16-bit High Resolution timer

Pricing (USD)

Quantity	Unit Price
1 — 99	3.404
100 — 249	2.982
250 — 999	2.091
1,000 +	1.18

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	16-bit Microcontrollers - MCU
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	DSBGA-40
Series	MSP430F5151
Core	MSP430
Data Bus Width	16 bit
Maximum Clock Frequency	25 MHz
Program Memory Size	16 kB
Data RAM Size	2 kB
Number of I/Os	31 I/O
Operating Supply Voltage	1.8 V to 3.6 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Packaging	Reel
Product	MCU
Program Memory Type	Flash
Brand	Texas Instruments
Data RAM Type	RAM
Interface Type	I2C, SPI, UART
Analog Supply Voltage	3.6 V
I/O Voltage	5.5 V
Number of Timers/Counters	3 x 16 bit
Product Type	16-bit Microcontrollers - MCU
Factory Pack Quantity	250
Subcategory	Microcontrollers - MCU
Supply Voltage - Max	3.6 V
Supply Voltage - Min	1.8 V
Tradename	MSP430
Watchdog Timers	No Watchdog Timer

For more information, please refer to datasheet

Documents

MSP430F5151IYFFT Datasheet

More Information

The TI MSP family of ultra-low-power microcontrollers consists of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low-power modes, is optimized to achieve extended battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency. The digitally controlled oscillator (DCO) allows the devices to wake up from low-power modes to active mode in less than 5 µs.
