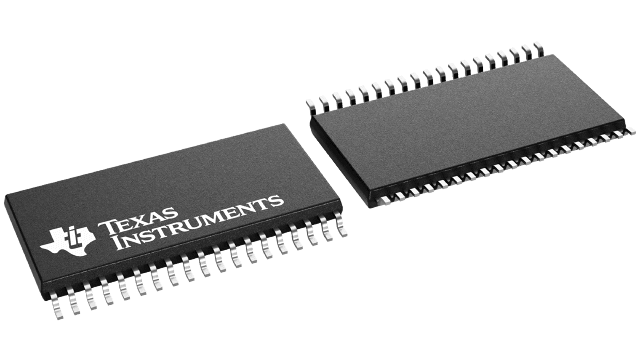

MSP430F5172IDAR Texas Instruments - Yeehing Electronics

25 MHz MCU with 32KB Flash, 2KB SRAM, 10-bit ADC, comparator, DMA, 16-bit High Resolution timer

Pricing (USD)

Quantity	Unit Price
1 — 99	3.238
100 — 249	2.837
250 — 999	1.989
1,000 +	1.12

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	16-bit Microcontrollers - MCU
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	TSSOP-38
Series	MSP430F5172
Core	MSP430
Data Bus Width	16 bit
Maximum Clock Frequency	25 MHz
Program Memory Size	32 kB
Data RAM Size	2 kB
ADC Resolution	10 bit
Operating Supply Voltage	1.8 V to 3.6 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Packaging	Reel
Program Memory Type	Flash
Brand	Texas Instruments
Interface Type	I2C, SPI, USCI
Moisture Sensitive	Yes
Number of ADC Channels	8 Channel
Processor Series	Series 5
Product Type	16-bit Microcontrollers - MCU
Factory Pack Quantity	2000
Subcategory	Microcontrollers - MCU
Tradename	MSP430
Watchdog Timers	No Watchdog Timer
Unit Weight	0.007189 oz

For more information, please refer to datasheet

Documents

MSP430F5172IDAR Datasheet

More Information

The TI MSP family of ultra-low-power microcontrollers consists of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low-power modes, is optimized to achieve extended battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency. The digitally controlled oscillator (DCO) allows the devices to wake up from low-power modes to active mode in less than 5 µs.
