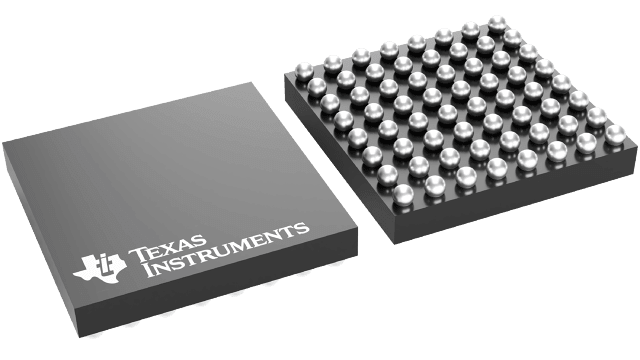

MSP430F5229IYFFR Texas Instruments - Yeehing Electronics

25 MHz MCU with 128KB Flash, 8KB SRAM, 10-bit ADC, comparator, DMA, 1.8V Split-Rail I/O

Pricing (USD)

Quantity	Unit Price
1 — 99	5.123
100 — 249	4.176
250 — 999	3.282
1,000 +	1.95

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	16-bit Microcontrollers - MCU
RoHS	N
Mounting Style	SMD/SMT
Package / Case	DSBGA-64
Series	MSP430F5229
Core	MSP430
Data Bus Width	16 bit
Program Memory Size	128 kB
Data RAM Size	8 kB
ADC Resolution	10 bit
Number of I/Os	31 I/O
Operating Supply Voltage	1.8 V to 3.6 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Packaging	Reel
Height	1 mm
Length	9.15 mm
Program Memory Type	Flash
Width	9.15 mm
Brand	Texas Instruments
Data RAM Type	SRAM
Interface Type	I2C, SPI
Processor Series	MSP430F522x
Product Type	16-bit Microcontrollers - MCU
Factory Pack Quantity	2500
Subcategory	Microcontrollers - MCU
Tradename	MSP430
Watchdog Timers	No Watchdog Timer

For more information, please refer to datasheet

Documents

MSP430F5229IYFFR Datasheet

More Information

The TI MSP430™ family of ultra-low-power microcontrollers consists of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with extensive low-power modes, is optimized to achieve extended battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency. The digitally controlled oscillator (DCO) allows the device to wake up from low-power modes to active mode in 3.5 µs (typical).
