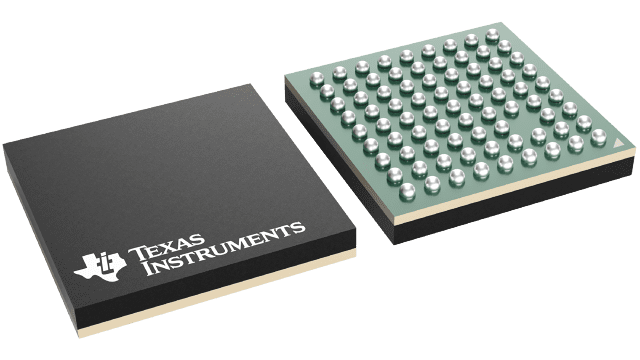

MSP430F5524IZXHR Texas Instruments - Yeehing Electronics

25 MHz MCU with 64KB Flash, 4KB SRAM, 12-bit ADC, comparator, DMA, UART/SPI/I2C, USB, HW multiplier

Pricing (USD)

Quantity	Unit Price
1 — 99	6.425
100 — 249	5.238
250 — 999	4.117
1,000 +	2.44

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

MSP430F5524IZXHR Datasheet

More Information

The Texas Instruments MSP430F55xx microcontrollers (MCUs) are part of the MSP430™ system control & communication family of ultra-low-power microcontrollers consists of several devices featuring peripheral sets targeted for a variety of applications. The architecture, combined with extensive low-power modes, is optimized to achieve extended battery life in portable measurement applications. The microcontroller features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency. The digitally controlled oscillator (DCO) allows the devices to wake up from low-power modes to active mode in 3.5 µs (typical).
