Texas Instruments

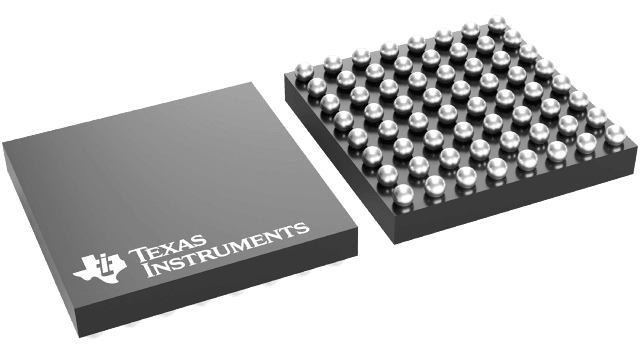

MSP430F5528IYFFR
MSP430F5528IYFFR
Couldn't load pickup availability
MSP430F5528IYFFR Texas Instruments - Yeehing Electronics
25 MHz MCU with 128KB Flash, 8KB SRAM, 12-bit ADC, comparator, DMA, UART/SPI/I2C, USB, HW multiplier
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 6.981 |
| 100 — 249 | 5.691 |
| 250 — 999 | 4.473 |
| 1,000 + | 2.66 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | 16-bit Microcontrollers - MCU |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | DSBGA-64 |
| Series | MSP430F5528 |
| Core | MSP430 |
| Data Bus Width | 16 bit |
| Maximum Clock Frequency | 25 MHz |
| Program Memory Size | 128 kB |
| Data RAM Size | 8 kB |
| ADC Resolution | 12 bit |
| Number of I/Os | 47 I/O |
| Operating Supply Voltage | 1.8 V to 3.6 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Reel |
| Product | MCU |
| Brand | Texas Instruments |
| Interface Type | I2C, SPI, UART |
| Number of ADC Channels | 12 Channel, 8 Channel |
| Number of Timers/Counters | 4 x 16 bit |
| Processor Series | Series 5 |
| Product Type | 16-bit Microcontrollers - MCU |
| Factory Pack Quantity | 2500 |
| Subcategory | Microcontrollers - MCU |
| Supply Voltage - Max | 3.6 V |
| Supply Voltage - Min | 1.8 V |
| Tradename | MSP430 |
| Watchdog Timers | No Watchdog Timer |
For more information, please refer to datasheet
Documents
| MSP430F5528IYFFR Datasheet |
More Information
The Texas Instruments MSP430F55xx microcontrollers (MCUs) are part of the MSP430™ system control & communication family of ultra-low-power microcontrollers consists of several devices featuring peripheral sets targeted for a variety of applications. The architecture, combined with extensive low-power modes, is optimized to achieve extended battery life in portable measurement applications. The microcontroller features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency. The digitally controlled oscillator (DCO) allows the devices to wake up from low-power modes to active mode in 3.5 µs (typical).
