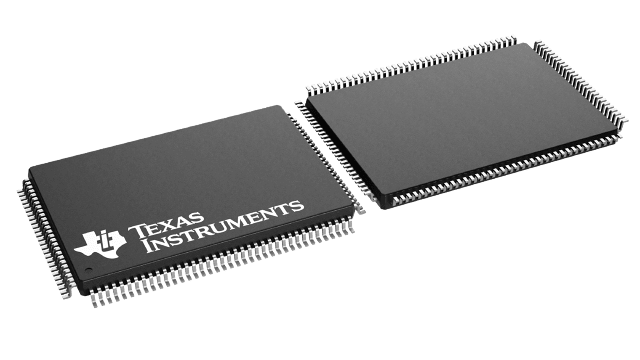

MSP430F67451AIPEU


YeeHing #: Y010-MSP430F67451AIPEU
Inventory: 3200

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

MSP430F67451AIPEU Texas Instruments - Yeehing Electronics

Polyphase metering SoC with 4 Sigma-Delta ADCs, LCD, real-time clock, 128KB Flash, 16KB RAM

Pricing (USD)

Quantity Unit Price
1 — 99 8.644
100 — 249 7.047
250 — 999 5.539
1,000 + 3.29

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Metering Systems on a Chip - SoC
RoHS Y
Mounting Style SMD/SMT
Package / Case LQFP-128
Series MSP430F67451A
Core MSP430
Data Bus Width 16 bit
Maximum Clock Frequency 25 MHz
Program Memory Size 128 kB
Data RAM Size 16 kB
ADC Resolution 10 bit, 24 bit
Number of I/Os 90 I/O
Operating Supply Voltage 1.8 V to 3.6 V
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 85 C
Packaging Reel
Height 1.45 mm
Length 20 mm
Program Memory Type Flash
Width 20 mm
Brand Texas Instruments
Data RAM Type SRAM
Interface Type I2C, SPI, UART
Moisture Sensitive Yes
Number of Timers/Counters 4 Timer
Processor Series MSP430
Product Type SOC - Metering Systems on a Chip
Factory Pack Quantity 750
Subcategory SOC - Systems on a Chip
Tradename MSP430
Unit Weight 0.021693 oz

For more information, please refer to datasheet

Documents

MSP430F67451AIPEU Datasheet

More Information

MSP430F67xx1A polyphase metering SoCs are powerful highly integrated solutions that offer high accuracy and low system cost with few external components. The MSP430F67xx1A microcontroller (MCU) family is part of the MSP430™ Metrology and Monitoring MCU portfolio targeting energy measurement and power monitoring applications including smart grid and building automation.
