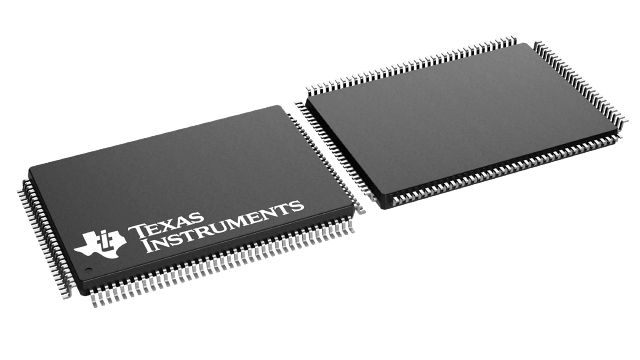

MSP430F6766IPEU


YeeHing #: Y010-MSP430F6766IPEU
Inventory: 7000

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

MSP430F6766IPEU Texas Instruments - Yeehing Electronics

Polyphase metering SoC with 6 Sigma-Delta ADCs, LCD, real-time clock, AES, 256KB Flash, 16KB RAM

Pricing (USD)

Quantity Unit Price
1 — 99 10.129
100 — 249 8.258
250 — 999 6.49
1,000 + 3.85

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category 16-bit Microcontrollers - MCU
RoHS Y
Mounting Style SMD/SMT
Package / Case LQFP-128
Series MSP430F6766
Core MSP430
Data Bus Width 16 bit
Maximum Clock Frequency 25 MHz
Program Memory Size 256 kB
Data RAM Size 16 kB
ADC Resolution 10 bit
Number of I/Os 90 I/O
Operating Supply Voltage 1.8 V to 3.6 V
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 85 C
Packaging Reel
Product MCU
Program Memory Type Flash
Brand Texas Instruments
Data RAM Type SRAM
Interface Type I2C, SPI, UART
Analog Supply Voltage 3.6 V
Moisture Sensitive Yes
Number of ADC Channels 6 Channel
Number of Timers/Counters 4 Timer
Product Type 16-bit Microcontrollers - MCU
Factory Pack Quantity 72
Subcategory Microcontrollers - MCU
Supply Voltage - Max 3.6 V
Supply Voltage - Min 1.8 V
Tradename MSP430
Watchdog Timers No Watchdog Timer
Unit Weight 0.021693 oz

For more information, please refer to datasheet

Documents

MSP430F6766IPEU Datasheet

More Information

The TI MSP430F677x family of polyphase metering SoCs are powerful highly integrated solutions for revenue meters that offer accuracy and low system cost with few external components. The F677x family of devices uses the low-power MSP430 CPU with a 32-bit multiplier to perform all energy calculations, metering applications such as tariff rate management, and communications with AMR and AMI modules.
