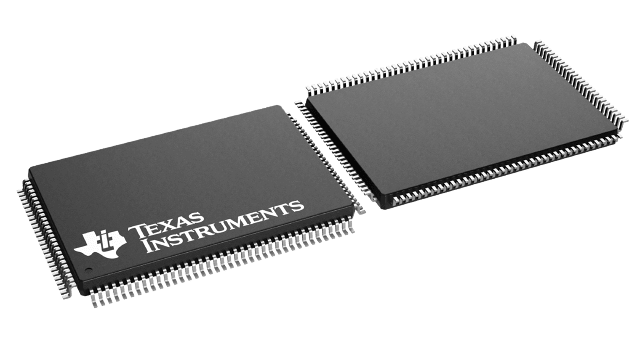

MSP430F67671IPEU Texas Instruments - Yeehing Electronics

Polyphase metering SoC with 6 Sigma-Delta ADCs, LCD, real-time clock, 256KB Flash, 32KB RAM

Pricing (USD)

Quantity	Unit Price
1 — 99	9.138
100 — 249	7.982
250 — 999	6.155
1,000 +	3.85

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	16-bit Microcontrollers - MCU
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	LQFP-128
Series	MSP430F67671
Core	MSP430
Data Bus Width	16 bit
Maximum Clock Frequency	25 MHz
Program Memory Size	256 kB
Data RAM Size	32 kB
ADC Resolution	10 bit
Number of I/Os	90 I/O
Operating Supply Voltage	1.8 V to 3.6 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Packaging	Tray
Product	MCU
Program Memory Type	Flash
Brand	Texas Instruments
Data RAM Type	SRAM
Interface Type	I2C, SPI, UART
Analog Supply Voltage	3.6 V
Moisture Sensitive	Yes
Number of ADC Channels	6 Channel
Number of Timers/Counters	4 Timer
Product Type	16-bit Microcontrollers - MCU
Factory Pack Quantity	72
Subcategory	Microcontrollers - MCU
Supply Voltage - Max	3.6 V
Supply Voltage - Min	1.8 V
Tradename	MSP430
Watchdog Timers	No Watchdog Timer
Unit Weight	0.021693 oz

For more information, please refer to datasheet

Documents

MSP430F67671IPEU Datasheet

More Information

The TI MSP430F677x1 family of polyphase metering SoCs are powerful highly integrated solutions for revenue meters that offer accuracy and low system cost with few external components. The F677x1 family of devices uses the low-power MSP430 CPU with a 32-bit multiplier to perform all energy calculations, metering applications such as tariff rate management, and communications with AMR and AMI modules.
