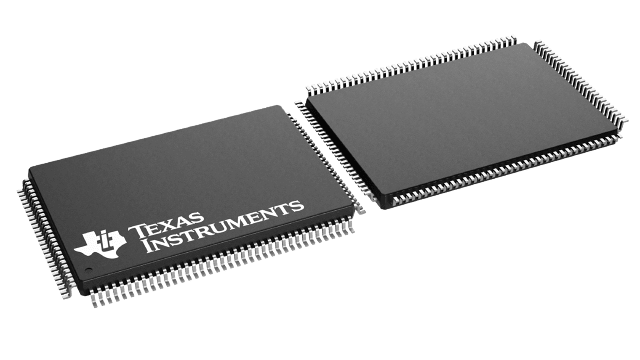

MSP430F6767AIPEU Texas Instruments - Yeehing Electronics

Polyphase metering SoC with 6 Sigma-Delta ADCs, LCD, real-time clock, AES, 256KB Flash, 32KB RAM

Pricing (USD)

Quantity	Unit Price
1 — 99	8.954
100 — 249	7.821
250 — 999	6.03
1,000 +	3.78

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	16-bit Microcontrollers - MCU
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	LQFP-128
Series	MSP430F6767A
Core	MSP430
Data Bus Width	16 bit
Maximum Clock Frequency	25 MHz
Program Memory Size	256 kB
Data RAM Size	32 kB
ADC Resolution	10 bit
Number of I/Os	90 I/O
Operating Supply Voltage	1.8 V to 3.6 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Packaging	Tray
Height	1.45 mm
Length	20 mm
Product	SoC
Program Memory Type	Flash
Width	20 mm
Brand	Texas Instruments
Data RAM Type	SRAM
Data ROM Size	-
Data ROM Type	-
Interface Type	GPIO, I2C, IrDA, SPI, UART
Analog Supply Voltage	1.8 V to 3.6 V
DAC Resolution	-
Development Kit	MSP-FET430U128, BOOSTXL-EDUMKII, EVM430-F6779, MSP-TS430PEU128
I/O Voltage	-
Moisture Sensitive	Yes
Number of ADC Channels	8 Channel
Number of Timers/Counters	4 Timer
Processor Series	MSP
Product Type	16-bit Microcontrollers - MCU
Factory Pack Quantity	72
Subcategory	Microcontrollers - MCU
Supply Voltage - Max	3.6 V
Supply Voltage - Min	1.8 V
Tradename	MSP430
Watchdog Timers	No Watchdog Timer
Unit Weight	0.021693 oz

For more information, please refer to datasheet

Documents

MSP430F6767AIPEU Datasheet

More Information

MSP430F67xxA polyphase metering SoCs are powerful highly integrated solutions that offer high accuracy and low system cost with few external components. The MSP430F67xxA microcontroller (MCU) family is part of the MSP430™ Metrology and Monitoring MCU portfolio targeting energy measurement and power monitoring applications including smart grid and building automation.
